130lm/w high lumen output New LED Low Bay Light for warehouse lighting,workshop
Quick details:
a. Anti-glare design, with acrylic cover plate ( milky or pearl transparent for optional)
b. non-waterproof for indoor lighting, lighter weight to save shipping cost
c. 2 types installation proposal: hanging with lifting rope, or fixed handle bracket on backside.
d. high brightness, 120lm/w for whole lamp, beam angle 120°
e. lumileds LEDs, CRI>80, CCT: 3000K/4000K/5700K/6500K
f. Meanwell driver, PF>0.95 , 5 years warranty
g. Power:150w/180w/240w
h. Certificate: CE,RoHS
Features:
1. High power ,high brightness,high quality,high efficiency,up to 80% energy saving..
2. Light cover adpots light diffusion materials to bring us better lighting effect.high illumination, and the mliky cover can reach 90% light transmittance.
3. With low light degradation LED and good heat dissipation aluminum material with quick heat conduction.Make the LED lights have longer lifetime.10 times than the traditional ones.They need low cost in maintenance.so,they are fit for the lighting place where is hard to replace the broken lights often..
4. High luminous efficiency,Whole lamp output light effiency >120LM/W.
Technical Parameter:
| Model | Input Voltage | Luminous Flux | Beam Angle | CRI | CCT | Product Dimension |
| LY-HB55150PW | AC100V～240V
50/60Hz | 15750lm | 120° | ＞80 | 5000-6500K | 362X291X130 |
| LY-HB55150WW | 14000lm | 2700-3200K |
| LY-HB55150NW | 14500lm | 4000-4500K |
Outlook:

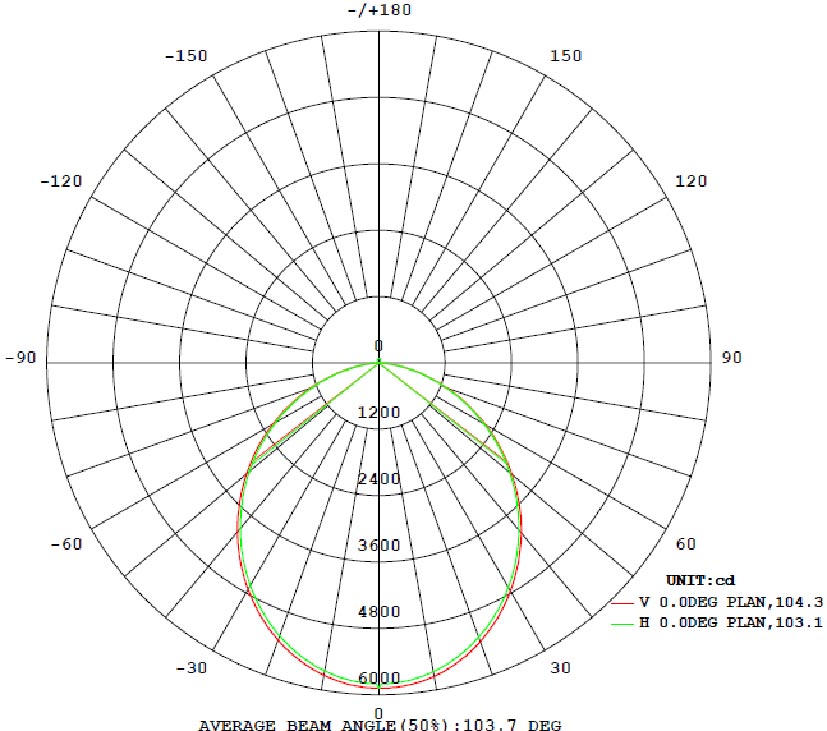

Distribution Curve:
Installation:
2 types Felxible Installation way: The low bay light support 2 types installation way.
The sling hanging way can be used the places which the fix point is limited.
The handle way is the normal way just like the others led lights, can be install at ground, ceiling & wall with 180° adjustable position.
Quality Control
100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability
and we will also test its temperature after 24 hours’ lighting. Then after it is cool we again test
100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures
before shipping to customer.
Our Services:
Trade term: EXW, FOB, CIF
MOQ: 1pcs
Port: Shenzhen, Zhongshan, Guangzhou
Sample availability: Yes
Supply capability: 1000 pcs/day
Payment: T/T, Western Union, L/C, Paypal.
Shipment: ocean or air transportation, international express
Normal lead time: 7days for sample order;15 days for production order
Payment condition: 30% before production, 70%before delivery
If any questions or requirement,please feel free to contact me.
Ella Zhang(sales Engineer)
T: +86-755-29816850 ext.8079
Mobile/whatsapp: +86-13632895220
Skype: lysales25
