Toolless Maintance Outdoor Super Brightness 30 Watt Led Street Light
Main Features:
| Model NO | LY-ST50030PW |
| LED Power | 30W |
| Luminous Efficiency | 160lm/W |
| LED Chip | LUXEON 5050 |
| Housing | Die-Casting Aluminum |
| LED Driver | Meanwell Driver |
| Lens | PC Lens+ Tempered glass |
| Beam Angle | 150*60 degree |
| Main Features: | 1.Toolless,Easy to Installation and Open
2.PC Lens+ Tempered glass( Double coving)
3. Photocell sensor for optional
4. Surge Protection 5KV-20KV for optional
5.Warranty :5 years |
Product Description
Details Images
LUXEON 5050 is a multi-die package LED that provides high luminance from a single package to enable cost effective,
single optic and directional fixture designs. LUXEON 5050 uses an industry standard 5050 surface
mount package with smallest round Light Emitting Surface (LES). LUXEON 5050 comes in 70CRI, 80CRI and 90CRI with a wide range of CCTs, and offers hot-color targeting to ensure that the LEDs are withincolor target at application conditions of 85°C

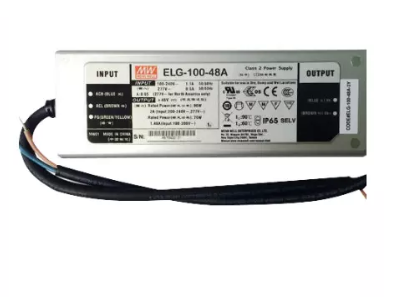

Constant Voltage + Constant Current mode output Metal housing design with functional Ground Built-in active PFC function No load /Standby power consumption <0.5W IP67 / IP65 rating for indoor or outdoor installations Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI; Auxiliary DC output Typical lifetime>50000 hours 5 years warranty
Production Pictures
Packaging
Optional function:
Daylight automatically controlling ON / OFF
Ø Turn-On Light Level: 10 Lux or at customer’s request
Ø Turn-Off Light Level: 50 Lux or at customer’s request
Ø Turn-On Time Delay: 10-15s
Ø Turn-Off Time Delay: 10-15s
2) Zigbee remote communication controlling
ZIGBEE controller conforms to IEEE802.15.4 protocol of ZIGBEE
communication standard. It has the advantages of remote communication,
strong anti-interference capability and flexible networking, realizing
peer-to-peer and peer-to-multi peer transparent data transmission among
devices, and constructing star network or mesh network topology.
ZIGBEE controller consists of a current and voltage measurement
circuit, which collect real-time load performance and power consumption of
street light.
Warming:
l Do Not Use Other Devices for LED Street Light ,Installation Such as
Stabilizer, Regulator …etc
l Do Not Open the Light Engine
l Do Not Soak the LED Street Light into Water
l Do Not Light up the System Without Grounding
l 1-10V dimming need to be customized
About Us
Shenzhen Leyond Lighting Co.,Ltd. was founded in 2005. who is a leading provider of outdoor lighting fixtures with high technology and quality. We are carry out enterprise culture of the “To customer demand as the guide,keep the leading technology, to create maximum value for customers”, and the spirit of “Humility self-discipline, perseverance, go all out” is our permanent pursuit. Leyond is striving to achieve the goal of “to be the best LED lighting supplier” and to“ build Leyond brand”.
Leyond is the Top 3 LED street light exporter from China,Our major products include Led Street Lights, Led Flood Light,LED Stadium Light,Led Canopy lights,ect,All design and making by ourself. According to customers’ requirement we can supply professional lighting solution not only design but also in production. Leyond operates strictly based on ISO 9001:2000, the quality management system from purchasing to designing to manufacturing.
Production
Main Projects
FAQ
- How to proceed an order for led light?
A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.
- Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
- Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
- How long will be the lead time?
A. This will be subject to your order quantity. Normally, below 5,000pcs, we will deliver within 15 working days. For large
quantity, please confirm with your order.
- Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
- How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
- How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

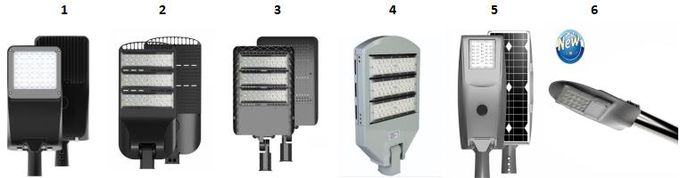

relevant Hot Selling items:
