160lm/w Super Bright CE EMC CB ENEC TUV Listed 30W 40W 50W 60w mini led street light

Shenzhen Leyond Lighting Co.,Ltd.
Contact Now

160lm/w Super Bright CE EMC CB ENEC TUV Listed 30W 40W 50W 60w mini led street light

Brand Name : LEDYOND

Model Number : LY-ST10030XX

Certification : CE RoHS EMC LVD CB ENEC TUV

Place of Origin : Shenzhen, China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000 pcs/month

Delivery Time : 7-10 work days

Packaging Details : Standard export carton 1pcs/carton,WG:8.8kg, Cartion Size:64*40*16cm

Item : 30w street light

LED source : Lumileds Luxeon 5050 led

Light Efficiency : 155-165lm/w

Driver : Meanwell driver

Beam angle : 150*70 degree

Contact Now

160lm/w Super Bright CE EMC CB ENEC TUV Listed 30W 40W 50W 60w mini led street light

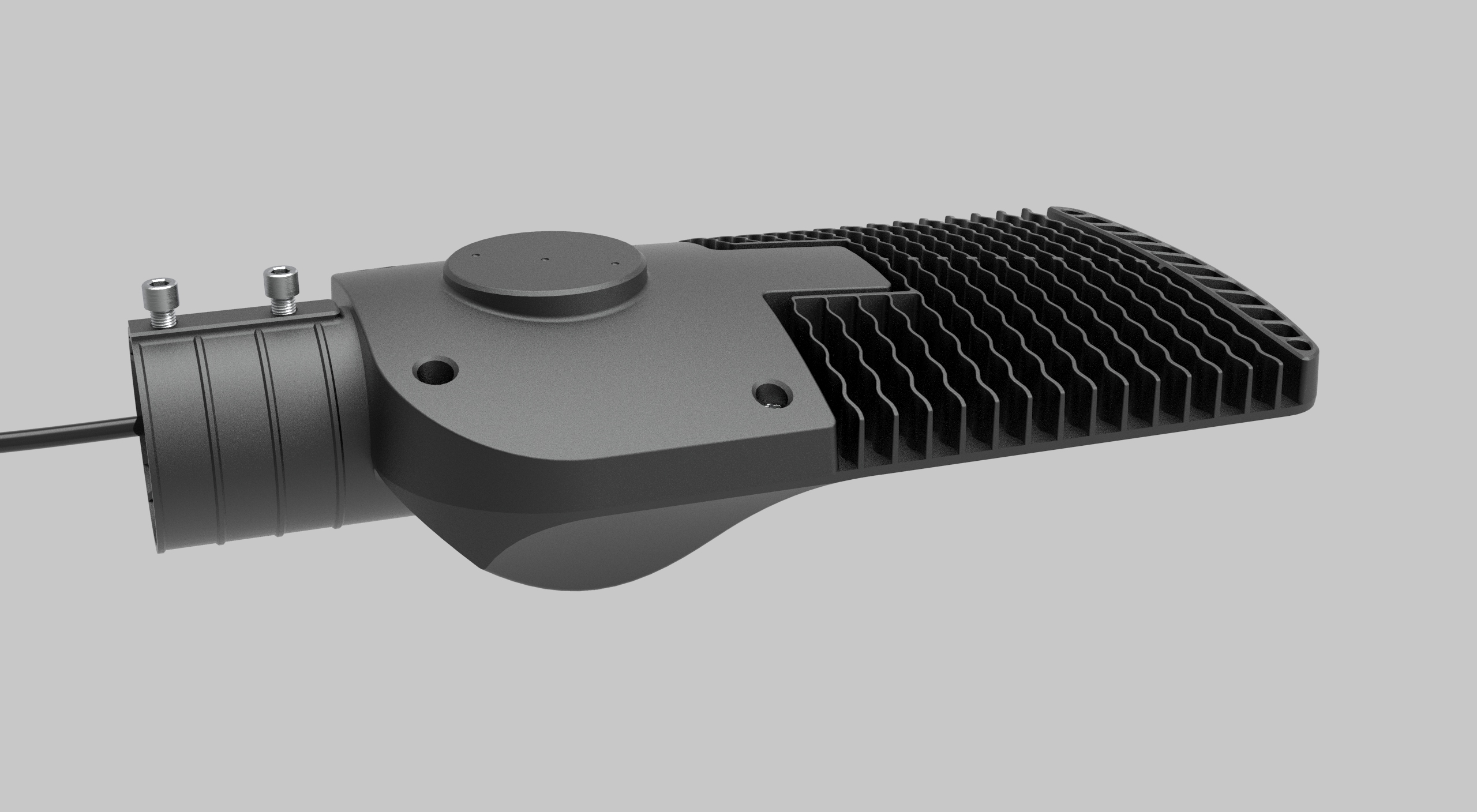

30W LED Street Light Dimension:

160lm/w Super Bright CE EMC CB ENEC TUV Listed 30W 40W 50W 60w mini led street light



30W LED Street Light Features:
  • 30W LED streetlight
  • Adopts American high power LED as lighting source
  • Can be used directly in 100 to 240V AC
  • Long lifespan, high brightness, energy-saving, and environment-friendly
  • High stability
  • Light body material: aluminum die-casting technology
  • Glisten cup: vacuum-plated aluminum
  • Glisten cup advantages: less astigmatism, even brightness, besides, can beam long distance and has good light efficiency
  • The reflector adopts good quality toughened glass, all parts uses stainless steel material and can guard against dust, water, and rust
  • Easy installation and wide application
  • Can be used together with solar panel and wind power
  • Greatly reduce the cost of installation and maintenance and to be the ideal replacement of traditional LED streetlight
  • Usually used in main street, branch road, park, uptown, school, and more
  • Uniformly distributed light and color without lens or halo
  • Great illuminating angle
  • Accurate constant-current driving with current fluctuation less than 1mA
  • Strict temperature control
  • Special circuit protection
  • Variable power
  • Operating temperature: -30 to 45°C
  • Main frame: aluminum alloy
30W LED Street Light Product Description
1) Aluminum + PC. Anti-glare lens.
2) Bridgelux chip, 3030. High luminous efficiency, > 120 LM/W;
3) Whole lamp output light efficiency>120 LM/W.
4) All leds connected in series,even one led dies out,other leds will not be affected;
5) Light facula is very uniform, no light pollution and no glare;
6) Comes with ambient light on the secondary road,the lux of secondary road is half of the main road.
7) IP66 waterproof design.
8) Modular structure, easy to do replacement and maintaining.
9) Module and whole lamp can be chosen.

30W LED Street Light Specifications

Par NO

Parameter

LY-ST20030XX LY-ST20040XX LY-ST20050XX LY-ST20060XX
Input voltage AC100V~240V 50/60HZ
System consumption(W) 30 40 50 60
Luminous flux(lm) 3900 5000 6100 7200
Chip Brand

LUXEON 3030

LEYOND 3030

LUXEON 3030

LEYOND 3030

LUXEON 3030

LEYOND 3030

LUXEON 3030

LEYOND 3030

Current 0.14A/220V 0.19A/220V 0.24A/220V 0.29A/220V
CRI >75
Color Temperature WW:2700-3200K / NW:4000-4500K / PW:5000-6500K
Lifespan(hrs) >50000
Luminous efficiency(lm/w) >120
Dimmable YES&NO YES&NO YES&NO YES&NO
IP Rating IP66
Net Weigh(kg) 2.8 2.8 2.8 2.8
Size(mm) 410*200*90 410*200*90 410*200*90 410*200*90

30W LED Street Light Detail Pictures:

160lm/w Super Bright CE EMC CB ENEC TUV Listed 30W 40W 50W 60w mini led street light

160lm/w Super Bright CE EMC CB ENEC TUV Listed 30W 40W 50W 60w mini led street light

160lm/w Super Bright CE EMC CB ENEC TUV Listed 30W 40W 50W 60w mini led street light



30W LED Street Light Operation and Storage Condition:

• Operation Ambient Temperature -30 to +60°C, Relative Humidity 20~90%

• Input Voltage 90-305V AC, 50/60Hz

• Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%

• Mounting Height : Suitable for 7-8M height



Leyond Street Light Project Case:

160lm/w Super Bright CE EMC CB ENEC TUV Listed 30W 40W 50W 60w mini led street light

160lm/w Super Bright CE EMC CB ENEC TUV Listed 30W 40W 50W 60w mini led street light



Our Services:
1.Factory price, large monthly output
2. 5 years warranty, high quality guarantee
3. professional Export service, easy to communicate and save your much time
4.Timely delivery, let you win biggest markets advantage
5.Satisfied After-sales service, to be your reliable supplier
6. any question will be get answer within 12 hours
7. R & D team, welcoem OEM and ODM order



Factory Environment:

Shenzhen LEYOND LIGHTING Co., Ltd. is a high-tech corporation founded in 2005, which is the wholy-owned subsidiary of LIYANG Electronic (HK) limited. We concentrateds and specializes in developing and producing high power LED lighting. Our major products include LED Floodlight, COB Led Spot Light&Ceiling Light,LED Hight Bay light and LED Billboard Light etc.Meantime,We also can supply professional lighting solution and OEM service based on customs’ requirement.



FAQ:

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 7-10 days for bulk order.

Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.

Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including recall according to real situation.
