IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle

IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle
​Features:
1. Multi-Chip on Lead Frame, Single Module LED Package Design
2. System Design Integrating Power Supply, LED Light Engine, and Heat Sink
3. Over Current, Over Voltage, Over Heat, Thunder Protection
4. Choice of Correlated Color Temperatures(Specification Re-Defined Accordingly)
5. Long lifespan for LED 50,000 hrs
6. IP Rating: IP65.
7.100% Recycle, No Pollution, and UV, IR
100W LED Flood Light technical data:

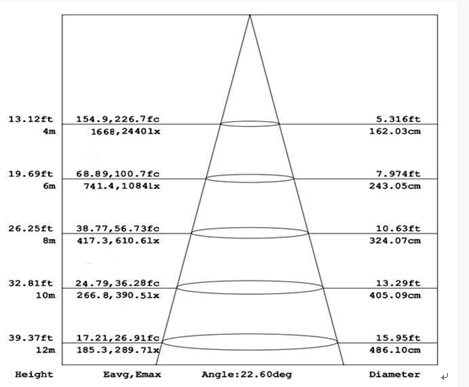

Photometry

Operation and Storage Condition
Operation Ambient Temperature -40 to +60°C, Relative Humidity 20~90%
Input Voltage 100~240V AC, 50/60Hz
Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
Mounting Height : Suitable for 8~10m heigh
Specifications:


Certificate
LED Lighting Certificated with CE
The Whole Floodlight Certificated with CE



Advantages:

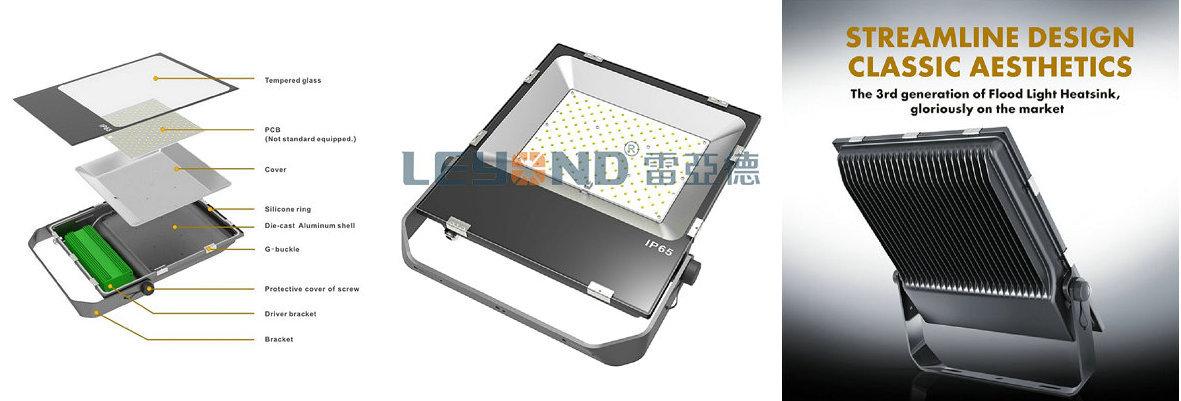

• Integrative design for heat sink and housing,The LED is closely connected to the surface. The heat from the LED is removed through the heat dissipation wing and also by air ventilation.​
• The surface is passed through anodic oxidation treatment.Its structure is compact and beautiful. It can meet the requirement of IP65. It has good capacity like antisepticising,waterproofing, and dust Prevention.
• Aluminium alloy diecast baking varnish heat sink, clear temprered glass, ensures good heat dissipation.
• Use toughened glass and the light transmittance is about 93%.
• VDE/UL listed rubber cable with cold-pressed terminal.
• Safe and easy for installation and maintenance.
• High heat conductivity,low luminous decay,pure light color and no ghosting.
• NO UV and near-IR radiation in the light beam

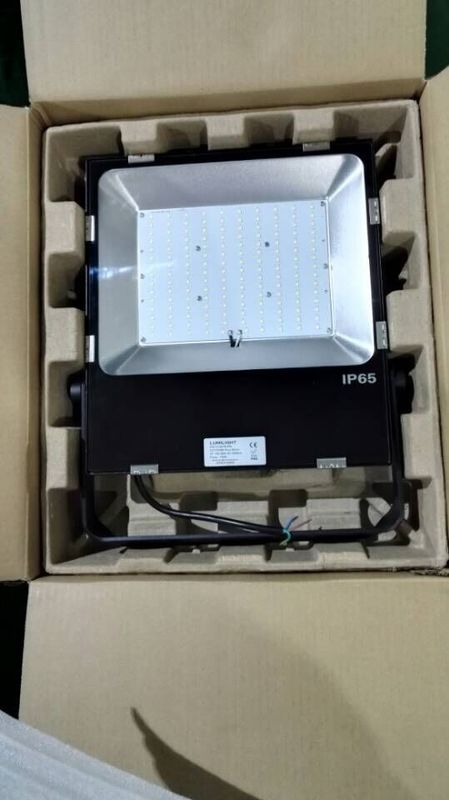

Packing




high power led floodlight

led outside flood lights

IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle Images
