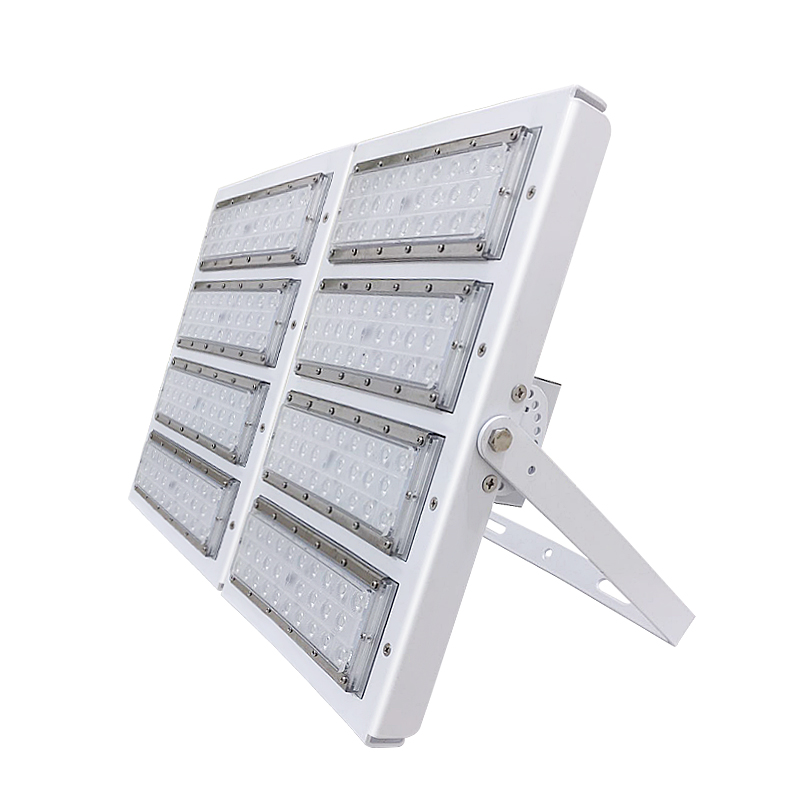

10KV Surge Protection 400W High Power LED Modular Flood Light with Meanwell Driver applicable to Stadium Site
1)Adoption LEYOND exclusive Lens with light transmittance up to 98%.
2)Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
3)There are 25°,60°, 90° beam angle options for the Lens.
4)Scientifically-designed heat dissipater with much better cooling effect.
5)High luminous efficiency, Whole lamp output light effiency >160LM/W.
6)High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
7)For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
8)Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
9)The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.
Warning
Please handle the product with care when open the package.
Do Not Open the Light Engine
Do Not Soak the Floodlight into Water
Do Not Light up the System Without Grounding
Do Not Use Dimmer
If the new LED down light is found damaged, please keep the original package and contact us.
In order to ensure the product work properly, please use the power supply within indicating voltage range.
Whatever the case, lamps can not be covered by heat resistant gasket or similar materials.
Electrical Specifications
| Model | Modules Number | Power | Input Voltage | Input Current | Power factor | Power efficiency |
| LY-ST23400PW | 8 | 400W | AC90~305V 50/60Hz | 1.86A/220VAC | >0.99/115VAC >0.98/230VAC | >90% |

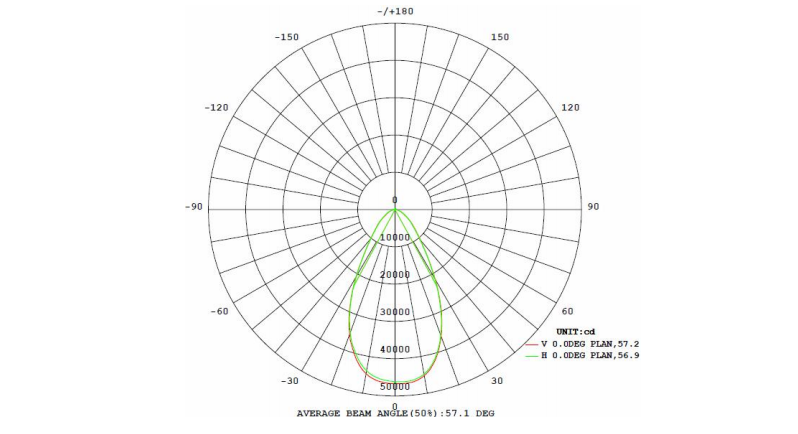

Photometric Specifications
| Model | Modules Number | Power | Luminous flux | Luminous efficiency | CRI | CCT | BeamAngle |
| LY-ST23400PW | 8 | 400W | 64000lm | 160lm/W | >70 | 3000-3500K 4000-4500K 5000-5500K 6000-6500K | 25° 60° 90° |

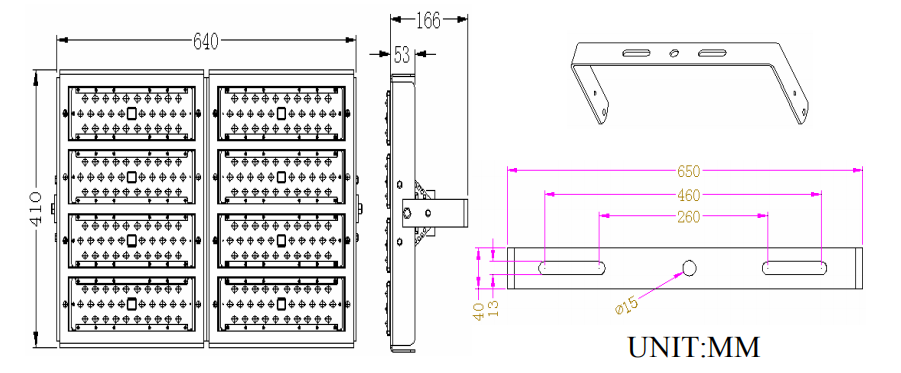

Mechanical Specifications
| Model | Modules Number | Power | Carton Size | gross weight | Net Weight | IP Rating | Meterial |
| LY-ST23400PW | 8 | 400W | 725×480×170mm | 20.8kg | 18.5kg | IP66 | Aluminum +PC |
Details

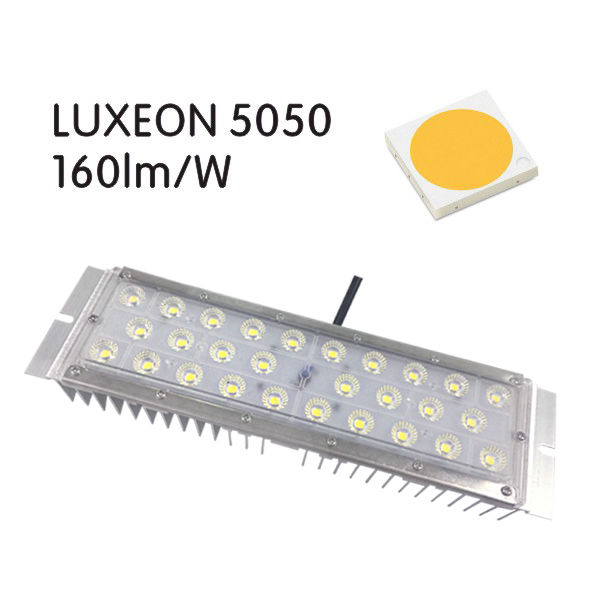

Perfect Light Distribution Solution:Using philips led chip to ensure high lumen and long life. Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
There are 24°,36°,60°, 90°, 160° beam angle options for the Lens.

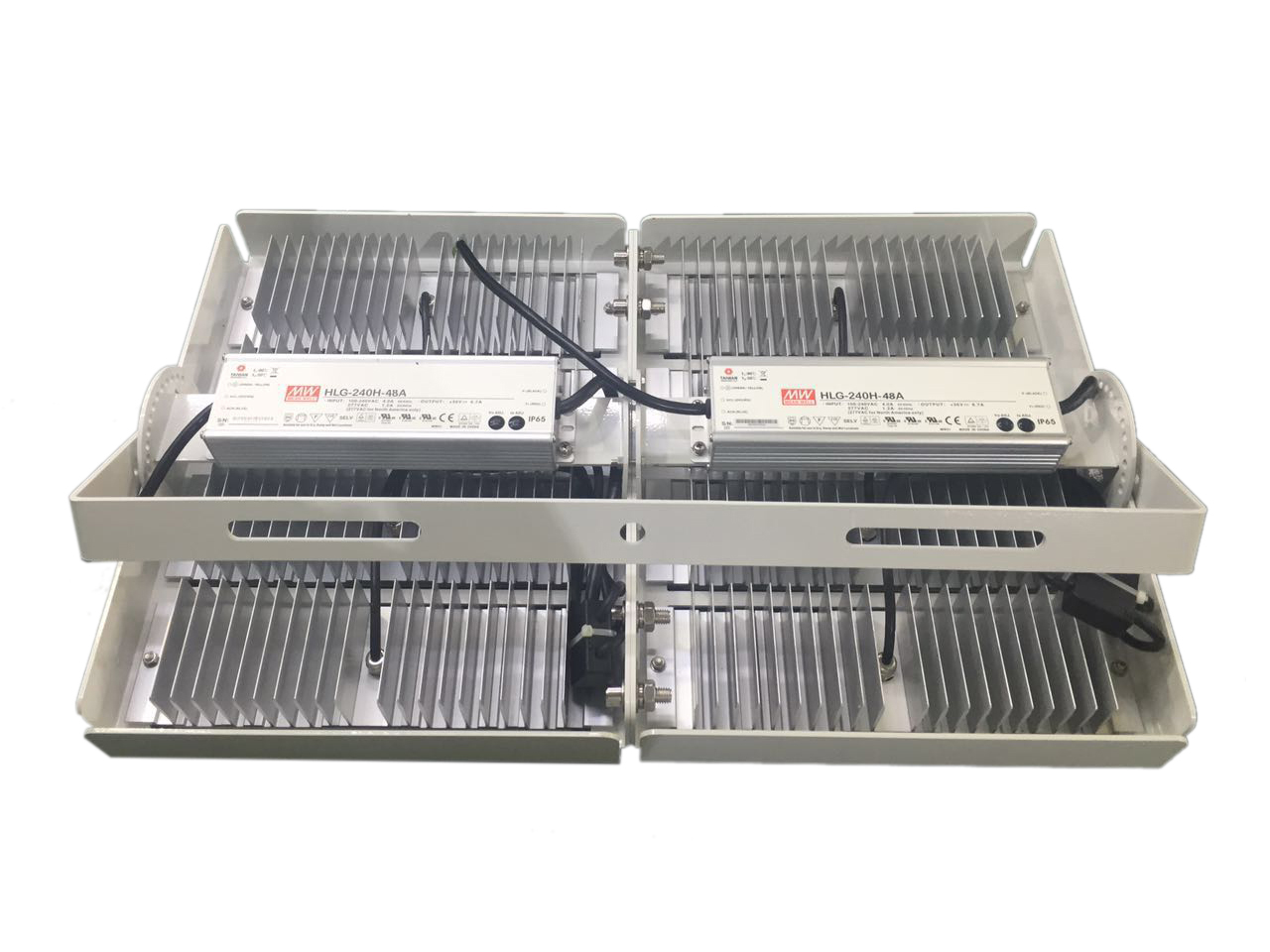

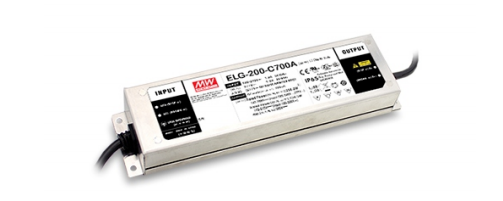

Very high quality MW power supply, input voltage AC 85-277V. The power efficiency is more than 90%, power factor greater than 0.98.

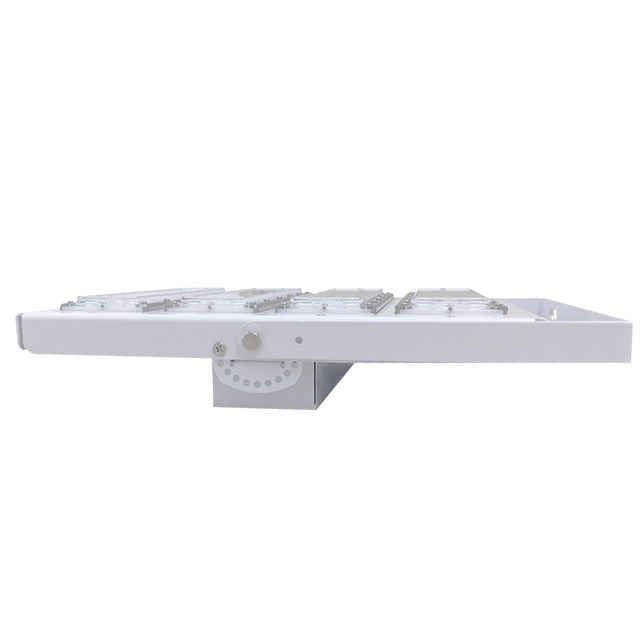

Lamp Body
Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp, harmless to the human body.
Absolutely unique DESIGN, nothing on the market like it. Make your lighting special and fantastic.Scientifically-Designed heat dissipater with much better cooling effect

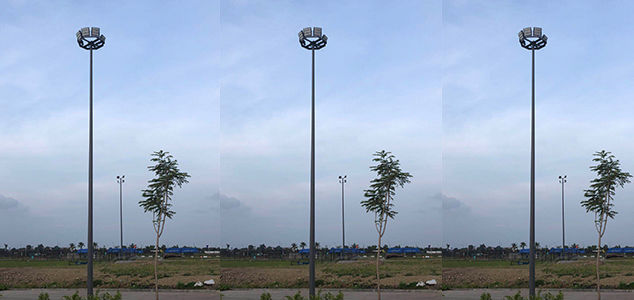

It is applicable to playground lighting ,warehouse lighting, plaza lighting, tunnel lighting andso on.
New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street
For More Information, Pls Feel Free To Contact Us
FAQ:
1. How to choose LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when
choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and
other materials will influence the product reliability.
2. Why choose Leyond Lighting?
A: Client-oriented, technology first, hornest operation is our business philosophy. Leyond
always treat the clients benefit as the most important thing. So, we use the top brand
material to produce high quality product.
3. How to place an order?
A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.
4. How long will the warranty period last?
A: We usually offer 5 years free warranty. More detailed warranty policy, please contact our sales representatives.
