PF >0.95 Outdoor High Bay Light IP65 Led Highbay Light / Lamp Energy Saving 25D
1. Specifications:
| Parameter Par NO | LY-HB65100PW | LY-HB65100WW | LY-HB65100NW |
| Inptut voltage | AC100V～240V 50/60HZ |
| Sysem consumption(W) | ＜103 | ＜103 | ＜103 |
| Luminous efficiency(lm/w) | 88 LM/W | 80 LM/W | 84 LM/W |
| Luminous(lm) | 8900 | 8200 | 68500 |
| LED quantity(pcs) | 3030 / 100PCS | 3030 / 100PCS | 3030 / 100PCS |
| Beam Angle | 25°/45° | 25°/45° | 25°/45° |
| CRI | ＞80 | ＞80 | ＞80 |
| Color Temperature(CREE) | 5000-5500k | 2700-3200k | 4000-4500k |
| Meterial | Aluminum+Glass |
| Driver | HLG-120H |
| Lifespan(hrs) | ＞50000 |
| Size of pack(mm) | 405*405*380 | 405*405*380 | 405*405*380 |
| HighBay Size(mm) | Φ357x362 | Φ357x362 | Φ357x362 |
| Net weight(KG) | 4.6 | 4.6 | 4.6 |
| Gross weight(KG) | 5.8 | 5.8 | 5.8 |
2. Features:
• 11 flexible positions makes project angle can be adjusted within 180 °.
• Professional heat dissipation structure design. Modular heatsink with perfect structure and inside airflow channels maxim the 3D heat dissipation.
• Rivet the heatsink body closely, minimize the heat resistance, greatly improve the heat dissipation effect, and it is much lighter compared with similar products.
• Waterproof design, eliminating mist, avoiding condensation,improving quality,extending the life span.
• Flake designed high-purity aluminum reflector angle scales , to adapt to different situations.There are 25°,45°,beam angle options for the flake designed reflector.Reflective rate could reach up to 95%.
• Over Current, Over Voltage, Over Heat, Thunder Protection
• Choice of Correlated Color Temperatures
• Long lifespan for LED 50,000 hrs
• 100% Recycle, No Pollution, and UV, IR
3. Pictures:
4. Outlook:
5. Split graph:
6. Photometry:
7. Optical Performance 70W High Bay Light Height = 10 m
8. Application:
1. Factory, warehouse, wharf
2. Airport, Gym, Square
3. Outdoor advertising
4. Replace traditional lamp such as, HID, HPS etc.

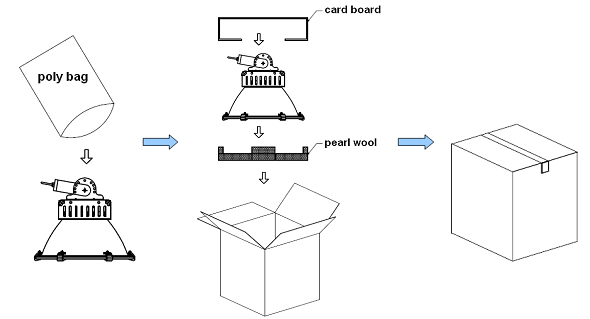

9. Package:
Carton Size: 405mm×405mm×380mm
Net weight:4.6KG Gross weight:5.8KG
10. Please Contact me If any interests you have by the following:
Contacts: Delina Cao. Email: sales15@leyond.com.cn Skype: ly-sales15
