Mini King Aluminium housing LED Street Light 30W Outdoor Garden Light
Features
• High luminous flux,reach 150-170LM/W.Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
• No diffuse reflection effect, with high light efficiency, coupled with a unique secondary optical design, can be irradiated to a wider area, once again improve the efficiency of light has reached the purpose of energy conservation.
• Anti-glare and uniform light level to avoid any visual discomfort.
• Adopting LUXEON 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 96%.
• Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
• Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
2. Specifications
| Par NO Parameter | LY-ST50030PW | LY- ST50030WW | LY- ST50030NW |
| Inptut voltage | AC90V～305V 50/60HZ |
| Sysem consumption(W) | 30 | 30 | 30 |
| Luminous flux(lm) | 4850 | 4260 | 4650 |
| Chip Brand | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 |
| Beam Angle | 150*65 DEG | 150*65 DEG | 150*65 DEG |
| CRI | ＞80 |
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K |
| LED Driver | LEYOND |
| Luminous efficiency(lm/w) | ＞160 |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP66 |
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | 300x150x66 | 300x150x66 | 300x150x66 |
| Net Weigh(kg) | 1.2 | 1.2 | 1.2 |
| Package Size(mm) | 330*180*100 | 330*180*100 | 330*180*100 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 1.6 | 1.6 | 1.6 |
3. Applications
Suitable for the highways,urban roads and secondary roads,stadiums,sidewalks,
residential areas,industrial areas,squares,parks,schools,villas,gardens and other places.
5. Pictures
6. Operation and Storage Condition
- Operation Ambient Temperature -30 to +50°C, Relative Humidity 20~90%
- Input Voltage 90~305V AC, 50/60Hz
- Storage Ambient Temperature -30 to +60°C, Relative Humidity 5~95%
- Mounting Height : Suitable for 3~6m height

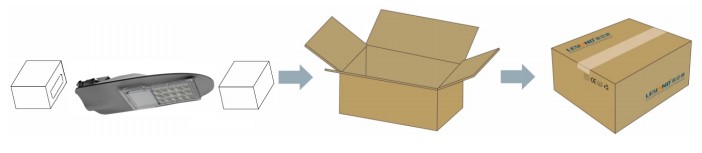

7. Package
Inner box Size: 330mm×180mm×100mm
Outer box Size: 350mm×390mm×240mm (4 PCS LED Street Light)
Product Tags:
|
|
Mini King 30W 150lm/w 4850lm Outdoor led Garden Light Images
|
