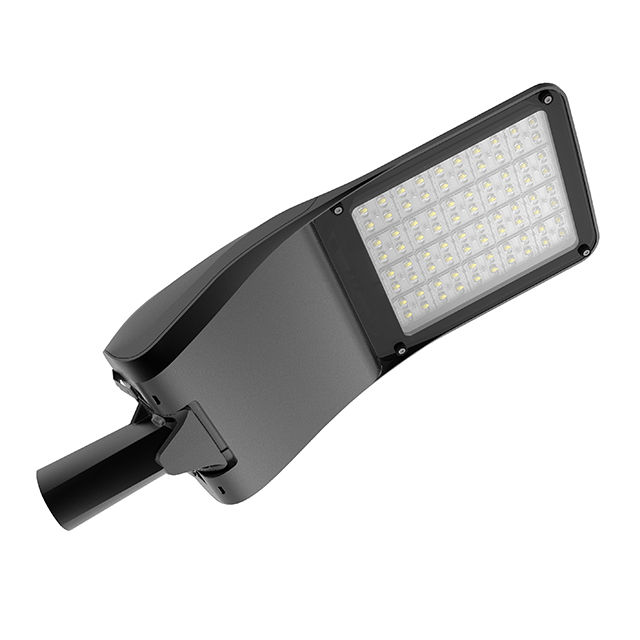

60w 3000K Waterproof LED Street Lights 4mm Thick Temperedglass Cover
30w 40w 50w 60w 4mm Thickness Temperedglass Cover IP68 High Efficiency LED Street Light
Features:
1. Absolutely unique mold,make your lighting special and fantastic.
2.Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
3. Anti-glare and uniform light level to avoid any visual discomfort.
4. High quality power supply, input voltage 85-305V. The power efficiency is more than 90%, power factor greater than 0.98.
5. Adopting LUXEON 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, higher light transmittance up to 96%.
6. Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenance cost.
7. Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products. l Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
8. Green environmental protection, no UV light and infrared radiation, no mercury pollution.
9. Nice appearance and non-fouling properties, Protection class IP66.
10. Work without strobe, fast transient response；A wide range of working voltage.
Specification:
| | Par NO |
| Parameter | LY-ST50060PW | LY-ST50060WW | LY-ST50060NW |
| LED driver | Inventronics EUM-075 |
| Beam angle | 150x65° | 150x65° | 150x65° |
| Pole diameter | 60MM | 60MM | 60MM |
| Light output | 60W | 60W | 60W |
| Luminous flux(lm) | 9700 | 9600 | 9650 |
| Chip Brand | LUXEON 5050 | LUXEON 5050 | LUXEON 5050 |
| LED Chip | LUMILEDS 5050 |
| CRI | ＞70 |
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K |
| Operating time | Full power >24 hours, Smart mode 7-10 nights |
| Control Mode | Light Control + Photocell |
| Material | Die Casting Aluminum |
| Luminous efficiency(lm/w) | ＞160 |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP66 |
| Installation height | 4~8M |
| Size(mm) | 619x240x139 | 619x240x139 | 619x240x139 |
| Net Weigh(kg) | 4.9 | 4.9 | 4.9 |
| Package Size(mm) | 660x280x190 | 660x280x190 | 660x280x190 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 5.8 | 5.8 | 5.8 |
Product descreption:
Installation method:
Installation instructions:
1. Switch off the Switch button
2. Adjust the right angle of the lamp
3. Connect the lamp adapter to Pole
4. Electrical wiring connection if Hybrid kit needed
5. Tight the adapter screws
6. Switch ON
Oprations:
• Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%
• Input Voltage 100~240V AC, 50/60Hz
• Storage Ambient Temperature -40 to +55°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 4~8m height
(Kindly reminder: All installation steps must handl by professional electrician)
Distribution Curve:
Applications:
- Road
- Highway
- Parking lot
- Rural road
- Landscape
- Walkway
- Path
Package info:
Inner box Size: 660mm×280mm×190mm
Outer box Size: 680mm×295mm×420mm
Actual pictures:
Related hot selling products:
1. Sword series LED street light 130w-200w
2. Sword series LED street light 70w-120w
3. Sword series LED street light 20w-60w
4. King series LED street light 80w-200w
5. King series LED street light 20w-60w
6. Integrated All in one Solar LED garden light 40w-100w
7. Integrated All in one Solar LED garden light 10w-30w
8. Fairy LED street light 10w-30w
9. Galaxy series LED street light 30-100w
10. Galaxy series LED street light 110w-200w
FAQ:
- What about the lead time?
A:Sample needs 7 days, mass production time needs 1-2 weeks for order quantity more than
- Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
- How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
- How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
- Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
- Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
- How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
