2021 Toolless opening design 80W 5050 Highway LED Street Lighting 150lm/w

Shenzhen Leyond Lighting Co.,Ltd.
Contact Now

2021 Toolless opening design 80W 5050 Highway LED Street Lighting 150lm/w

Brand Name : LEDYOND

Model Number : LY-ST50080PW

Certification : CE RoHS CB TUV ENEC

Place of Origin : Shenzhen, China

MOQ : 1 Pcs

Price : 70-80usd/pcs

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs/week

Delivery Time : 7-10 Working days

Packaging Details : Standard Export Carton

Power : 80W

Housing Material : Aluminum Alloy

Housing Color : Grey or Black

LED Chip : Luxeon 5050 led

Driver : Meanwell ELG-100H-48A

Luminous flux(lm) : 13200

Contact Now


High quality outdoor Waterproof IP66 5050 SMD led street light 80w 100w 120w 150w 180w outdoor led street lighting

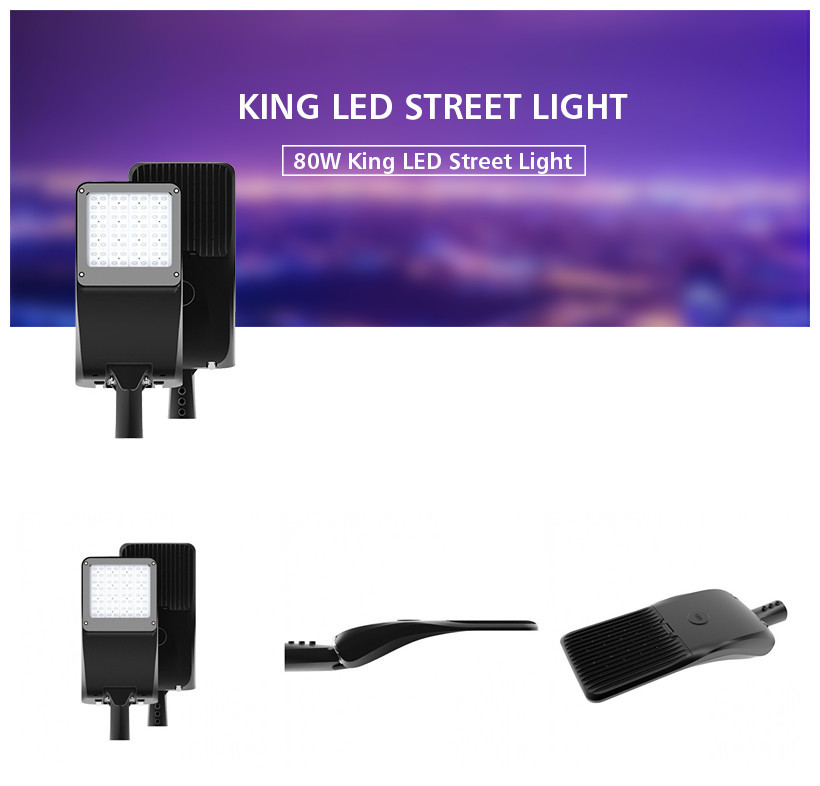

80W Toolless LED Street light Specification:
2021 Toolless opening design 80W 5050 Highway LED Street Lighting 150lm/w





Par NO

Parameter

LY-ST50080PW LY-ST50080NW
Input voltage AC100V~240V 50/60HZ
System consumption(W) 80 80
Luminous flux(lm) 13200 12800
Chip Brand

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050

Current 0.37A/220V 0.37A/220V
CRI >75
Color Temperature WW:2700-3200K / NW:4000-4500K / PW:5000-6500K
Lifespan(hrs) >50000
Luminous efficiency(lm/w) >160
Dimmable YES&NO YES&NO
IP Rating IP65
Net Weigh(kg) 6.2 6.2
Size(mm) 722*300*149 722*300*149

2021 Toolless opening design 80W 5050 Highway LED Street Lighting 150lm/w


80W Toolless LED Street light Application:



Good used for highways,urban roads and secondary roads,stadiums,sidewalks,residential areas,industrial areas,squares,parks,schools,villas,gardens and other places.



80W Toolless LED Street light Features:



• Top quality Meanwell or Sosen power supply,input voltage 90-305V.The power efficiency is more than 89%, power factor>0.95,UL certification.

Adopting Super bright 5050 led and ZAG lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.

Die-casting aluminum housing, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenancecose.

Low energy consumption, matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current,over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.

Durable lights with long life spn up to 50000hours; No need replace the lights frequently just make the regular maintenance.

Green environmental protection, no UV light and infrared radiation, no mercury pollution.

Nice appearance and non-fouling properties, Protection class IP66.
Work without strobe, fast transient response; A wide range of working voltage.
2pcs 1W chips are packaged in one LED, which ensure high stability and also reduce the death rate of the leds





Leyond Company Profile:



Shenzhen Leyond Lighting Co.,Ltd. was founded in 2005 which is the wholly-owned subsidiary of LiYang Electronic(Hongkong) Limited. We are High-Tech enterprise who concentrate and specialize in developing and producing Eco-friendly high power LED Lightings.

Leyond company is located in Shenzhen, owns a 6000m2 factory with high qualified clear workshops and 300 employees. Together with outstanding optical & technical personnels and quality engineers; equipped with advance automaticity Die Bonding & chip bonding equipments and molding machines; perfect quality-testing and safeguard measures; all of these promote Leyond to be the leader in the industry.

“Innovation is the base of development; qualified service is the foundation of existence”, Leyond keeps up with marketing trend based on customers’ requirements, try to supply the best products with best price & quality and humanistic service.

LEYOND is the Top 3 LED street light exporter from China,Our major products include Led Street lights, Led flood light,Stadium&Large Area Lighting,Led Canopy lights,ect,All design and making by ourself. According to customers’ requirement we can supply professional lighting solution not only design but also in production. Leyond operates strictly based on ISO 9001:2000, the quality management system from purchasing to designing to manufacturing.

Our products are exported to Europe, Americas, Africa and other Asian countries with UL,ROHS,CE and CB international standard. Also we have flexible and timely after-sales services. We offer high quality products and sustainable service to our customers, establishing long-term cooperative relationship with them.

Feeling the charm of light, to find the value of the light. We carry out enterprise culture of the “To customer demand as the guide,keep the leading technology, to create maximum value for customers”, and the spirit of “Humility self-discipline, perseverance, go all out” is our permanent pursuit. Leyond is striving to achieve the goal of “to be the best LED lighting supplier” and to“ build Leyond brand”.

2021 Toolless opening design 80W 5050 Highway LED Street Lighting 150lm/w

2021 Toolless opening design 80W 5050 Highway LED Street Lighting 150lm/w

2021 Toolless opening design 80W 5050 Highway LED Street Lighting 150lm/w

2021 Toolless opening design 80W 5050 Highway LED Street Lighting 150lm/w



2021 Toolless opening design 80W 5050 Highway LED Street Lighting 150lm/w



Our Service:

Payment: T/T in advance

Items: EXW Price

Delivery Time: 5-7 days for sample, 10-15 working days for bulk quantity.

Shipping way: DHL, FEDEX, UPS, TNT express, by sea or by air.




FAQ:

1. May I have a sample for the light please?
---Sure,mixed power is also support.

2. How many watts does this light provide?
---80w, 100w,120w, 150w, 180w

3. Which shipping way do you have?
---DHL, FEDEX, UPS and TNT are all support. By sea or by air can be available based on your request.

4. What is your warranty?
---We are provide 3-5 years warranty which based on different materials.

5. What is the delivery time?
---Normally, 5-7 days for sample, 15-20 days for bulk order. If on special condition, the delivery time can be discussed.

6. Do you make OEM ?
---Yes, OEM orders are warmly welcomed.

7. Are you the manufacturer?
---Yes, we are professional manufacturer for led lighting since 2008. And have completed design-delelop-sales-service system.



Thanks for your time. For further information please feel free to contact our sales tearm by following way:





Contacts: Fanny fang



Skype: ly-sales12



Email: sales12(at)leyond(.)com(.)cn
