6.Absolutely unique mold,make your lighting special and fantastic.
7.Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
8.Anti-glare and uniform light level to avoid any visual discomfort.
9.high quality power supply, input voltage 85-305V. The power efficiency is more than 90%, power factor greater than 0.98.
10.Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning,high temperature, which fully ensure long life span and high stability of the products.
11.No need frequent replacements of lights and regular maintenance.
12.Green environmental protection, no UV light and infrared radiation, no mercury pollution.
| Par NO Parameter | LY-ST40120PW | LY-ST40120WW | LY-ST40120NW |
| Inptut voltage | AC90V～305V 50/60HZ |
| Sysem consumption(W) | 100 | 100 | 100 |
| Luminous flux(lm) | 19500 | 16700 | 18600 |

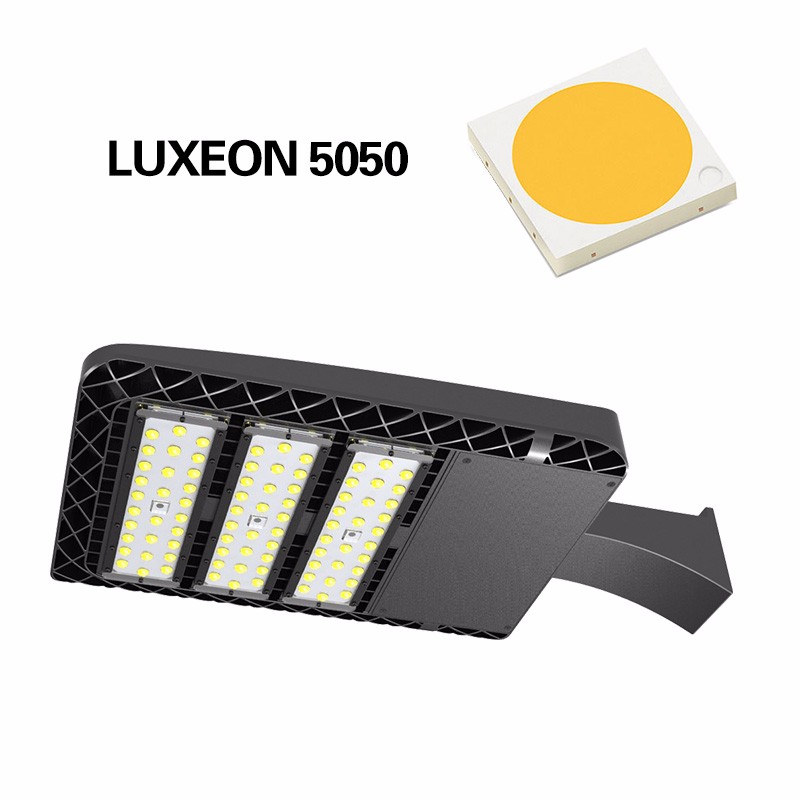

| Chip Brand | LUXEON 5050 / BRIDGELUX CHIP 5050 | LUXEON 5050 / BRIDGELUX CHIP 5050 | LUXEON 5050 / BRIDGELUX CHIP 5050 |
| Beam Angle | 150*65 DEG | 150*65 DEG | 150*65 DEG |
| CRI | ＞70 |
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K |
| LED Driver | MEAN WELL HLG-120H / ELG-150 |
| Luminous efficiency(lm/w) | ＞160 |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP65 |
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | 720x340x69 | 720x340x69 | 720x340x69 |
| Net Weigh(kg) | 7.3 | 7.3 | 7.3 |
| Package Size(mm) | 740*368*110 | 740*368*110 | 740*368*110 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 8.4 | 8.4 | 8.4 |
Operation and Storage Condition:
• Operation Ambient Temperature -30 to +60°C, Relative Humidity 20~90%
• Input Voltage 90-305V AC, 50/60Hz
• Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%

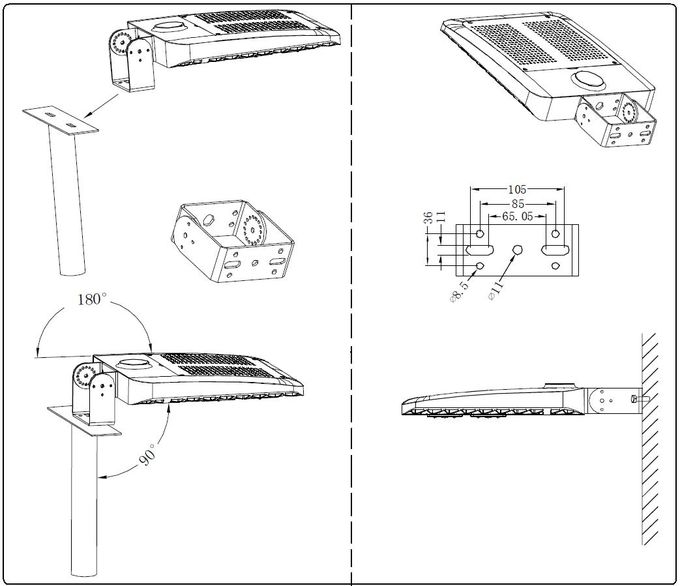

• Mounting Height : Suitable for 7-8M height
Our Services:
1. Factory price, large monthly output
2. 5years warranty, high quality guarantee
3. professional Export service, easy to communicate and save your much time
4. Timely delivery, let you win biggest markets advantage
5. Satisfied After-sales service, to be your reliable supplier
6. any question will be get answer within 12 hours
7. R & D team, welcoem OEM and ODM order
Welcome to contact us for more details.
