China Manufacture LED Street Lighting outdoor Street Lights 160lm/w with Optical Lens

Shenzhen Leyond Lighting Co.,Ltd.
Contact Now

China Manufacture LED Street Lighting outdoor Street Lights 160lm/w with Optical Lens

  • 1
  • 2
  • 3

Brand Name : Leyond

Model Number : LY-ST10050-XX / LY-ST10060-XX

Certification : CE,RoHS

Place of Origin : China

MOQ : 10pcs

Price : >50 (negotiable)

Payment Terms : T/T, Western Union, PayPal

Supply Ability : 30,000 pcs/month

Delivery Time : 5-15 working days

Packaging Details : Standard neutral Color Box

Power : 50w 60w

LED Chip : Lumileds 5050

LED Driver : Meanwell

IP Rating : IP66

PF : >0.98

CCT : 2700-6500K

Material : Aluminum+PC optical lens

Beam Angle : 150X65 de

Contact Now

162lm/W Energy Efficient LED Street Lamps 50w 60w LED Street Light List



Outdoor Led Street Light Specification:



Product Model

Power

LED Quantity

Luminous Flux

Light Efficiency

CRI

CCT

Beam Angle

LY-ST10060

  60W

   28 pcs

   9600 LM

   160 LM/W

  >70

2700-6500K

150x65d



Product Model

Input Voltage

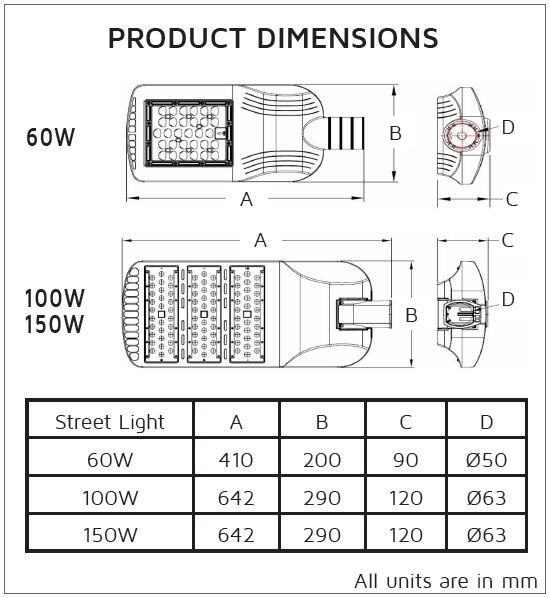

Product Size

IP Grade

Life Span

Material

Power Range

LY-ST10060

AC100-240V

410x200x90mm

IP66

50000 hrs

Alumium+PC

30w 40w 50w 60w





Par NO

Parameter



LY- ST10040WW



LY- ST10050NW



LY- ST10060NW

Inptut voltage AC100V~240V 50/60HZ // DC12-24V
Sysem consumption(W) 40 50 60
Luminous flux(lm) 6600 8000 9600
Chip Brand
LUXEON 5050/LEYOND 5050
LUXEON 5050/LEYOND 5050
LUXEON 5050/LEYOND 5050
Beam Angle 150*65 DEG 150*65 DEG 150*65 DEG
CRI >80
Color Temperature Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K
LED Driver
MEAN WELL
Luminous efficiency(lm/w) >160
Lifespan(hrs) >50000
IP Rating IP65
Dimmable YES&NO YES&NO YES&NO
Size(mm) 410x200x90 410x200x90 410x200x90
Net Weigh(kg) 2.75 2.75 2.75
Package Size(mm) 465*255*145 465*255*145 465*255*145
Package Quantity(Pcs) 1 1 1
Gross Weigh(kg) 3.3 3.3 3.3




Advantages:



Street light with 5050 chips 160-170lm/w, features as below:



1) 160-170lm/w on the Luminaire,black polish shining housing,IP66 rated.
2) Independent model design, 30w/ 50w/ 100w/ 120w/ 150w available.
3) Lumileds 5050 LEDs,robust aluminum housing,plus Meanwell HLG driver,5 years warranty.



Features:



1. Bat Wing Beam Angle:150°x70

2. Modular design,Easy Replacement,good heat dissipation,Small size,light weight,competitive price.

3. Energy Saving,Economical and environmentally friendly

4. Grey & Black Housing,flexible chosen.

5. Fast delivery time.

6. Multiple functions: dimmable, daylight control, photocell sensor

China Manufacture LED Street Lighting outdoor Street Lights 160lm/w with Optical Lens

China Manufacture LED Street Lighting outdoor Street Lights 160lm/w with Optical Lens

China Manufacture LED Street Lighting outdoor Street Lights 160lm/w with Optical Lens

China Manufacture LED Street Lighting outdoor Street Lights 160lm/w with Optical Lens



China Manufacture LED Street Lighting outdoor Street Lights 160lm/w with Optical Lens





Application:

1. Parking lot, urban roads,secondary roads

2. Stadiums, sidewalks, residential areas,

3. Industrial areas,squares, parks,

4. Schools,villas, Gardens and other places.

China Manufacture LED Street Lighting outdoor Street Lights 160lm/w with Optical Lens



Our Service:



Payment: T/T in advance

Items: EXW Price

Delivery Time: 5-7 days for sample, 12-18 work days for bulk order.

Shipping way: DHL, FEDEX, UPS, TNT express, by sea or by air.



Quality Control:



Quality guarantee is based on storing,installing,operating and maintaining correctly in the normal operation condition.

Our company will maintain the right to either repair,parts replacing,or products exchange during the quality warranty period.



Operating Guide:



1. Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
2. Input Voltage 85~265V AC, 50/60Hz
3. Storage Ambient Temperature -20 to +65°C, Relative Humidity 10~90%
4. Mounting Height : Suitable for 5~10m height



FAQ



- How to proceed an order for led light?
A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.

- Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

- Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

- How long will be the lead time?
A. This will be subject to your order quantity. Normally, below 5,000pcs, we will deliver within 15 working days. For large
quantity, please confirm with your order.

- Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
