Mini Size 20-30w Street Light Led Lamp High Lumen Out Put 160lm/w 5 Years Warranty

Shenzhen Leyond Lighting Co.,Ltd.
Contact Now

Mini Size 20-30w Street Light Led Lamp High Lumen Out Put 160lm/w 5 Years Warranty

Brand Name : LEYOND

Model Number : LY-ST60030-XX

Certification : TUV ENEC CE RoHS CB GS SAA UL DLC

Place of Origin : Guangdong, China

MOQ : 5 pcs

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000 pcs/month

Delivery Time : 5-7 days for samples

Packaging Details : Standard Export Packing

Power : 30w

LED Chip : Lumileds 5050 SMD

LED Driver : leyond

IP Rating : IP65

CCT : 2700-6500K

Warranty : 5 Years

Beam angle : 150X65degree / 153x80 degree

Package : 75cm×40cm×23cm (2 PCS )

GW : 2.6kg

Luminous flux : 4800lm

Dimmable : YES&NO

CRI : >80

Pole Diameter : 50mm

Contact Now

160lm/W 10w-20-30w Fairy series LED Street Light

Mini Size 20-30w Street Light Led Lamp High Lumen Out Put 160lm/w 5 Years Warranty





Product Description:


1. Save 80% more energy compared with traditional lighting fixtures



2. Easy to install and use, secure and reliable



3. No UV or RF interference, No mercury or lead



4. Light body is made of good quality die casting aluminum, exiguity and unique design, excellent heat dissipation



5. long life span>50000hrs





Dimension:

Mini Size 20-30w Street Light Led Lamp High Lumen Out Put 160lm/w 5 Years Warranty



Specification:


Model Inptut voltage Sysem consumption Luminous flux Chip Brand Beam Angle
LY-ST60030PW AC100V~240V
50/60HZ
30W 4850lm luxeon5050 150*65°
LY-ST60030WW 4800lm
LY-ST60030NW 4700lm





Model Dimmable Size(mm) Net Weight Package Size(mm) Gross Weight
LY-ST60030PW YES&NO 300x150x66 2.6kg 720*370*200 5.6
LY-ST60030WW
LY-ST60030NW





led street lighting series

Model Power Lumens LED Chip Driver Input Voltage
LY-ST20030-XX 30W 3600lm 30pcs Lumileds 3030 Meanwell HLG-40 AC95-305V
LY-ST20040-XX 40W 4800lm 30pcs Lumileds 3030 Meanwell HLG-40 AC95-305V
LY-ST20050-XX 50W 6000lm 30pcs Lumileds 3030 Meanwell HLG-60 AC95-305V
LY-ST20060-XX 60W 7200lm 30pcs Lumileds 3030 Meanwell HLG-60 AC95-305V
LY-ST20100-XX 100W 12000lm 90pcs Lumileds 3030 Meanwell ELG-100 AC95-305V
LY-ST20120-XX 120W 14400lm 90pcs Lumileds 3030 Meanwell ELG-150 AC95-305V
LY-ST20150-XX 150W 18000lm 90pcs Lumileds 3030 Meanwell ELG-150 AC95-305V
LY-ST10030-XX 30W 4800lm 30pcs Lumileds 5050 Meanwell HLG-40 AC95-305V
LY-ST10040-XX 40W 6400lm 30pcs Lumileds 5050 Meanwell HLG-40 AC95-305V
LY-ST10050-XX 50W 8000lm 30pcs Lumileds 5050 Meanwell HLG-60 AC95-305V
LY-ST10060-XX 60W 9600lm 30pcs Lumileds 5050 Meanwell HLG-60 AC95-305V
LY-ST10100-XX 100W 16000lm 72pcs Lumileds 5050 Meanwell ELG-100 AC95-305V
LY-ST10120-XX 120W 19200lm 72pcs Lumileds 5050 Meanwell ELG-1250 AC95-305V
LY-ST10150-XX 150W 24000lm 72pcs Lumileds 5050 Meanwell ELG-150 AC95-305V



Product details:

Mini Size 20-30w Street Light Led Lamp High Lumen Out Put 160lm/w 5 Years Warranty

Mini Size 20-30w Street Light Led Lamp High Lumen Out Put 160lm/w 5 Years Warranty

Mini Size 20-30w Street Light Led Lamp High Lumen Out Put 160lm/w 5 Years Warranty

Mini Size 20-30w Street Light Led Lamp High Lumen Out Put 160lm/w 5 Years Warranty



Mini Size 20-30w Street Light Led Lamp High Lumen Out Put 160lm/w 5 Years Warranty

Mini Size 20-30w Street Light Led Lamp High Lumen Out Put 160lm/w 5 Years Warranty

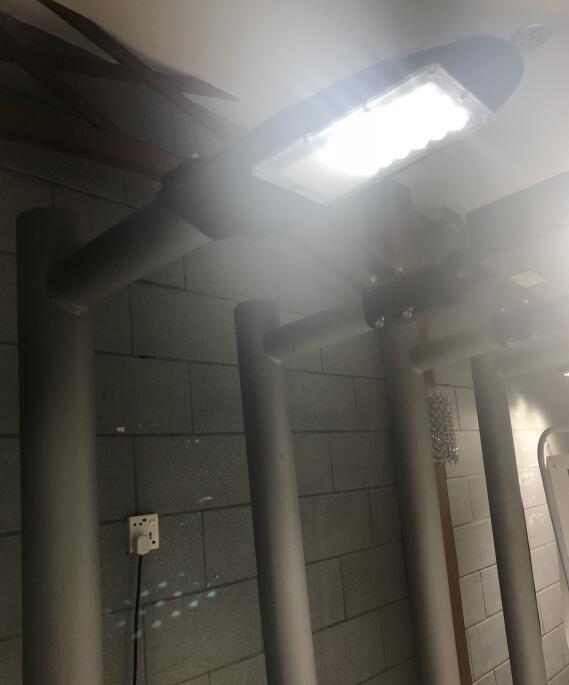

Aging Test:

Mini Size 20-30w Street Light Led Lamp High Lumen Out Put 160lm/w 5 Years Warranty

Application:

Mini Size 20-30w Street Light Led Lamp High Lumen Out Put 160lm/w 5 Years Warranty

Mini Size 20-30w Street Light Led Lamp High Lumen Out Put 160lm/w 5 Years Warranty







Our Services:



MOQ: 5pcs



Port: Shenzhen, Zhongshan, Guangzhou



Sample availability: Yes



Supply capability: 1000 pcs/day



Payment: T/T, Western Union, Paypal.



Shipment: ocean or air transportation, international express



Normal lead time: 5days for sample order;10 days for production order



Payment condition: 30% before production, 70%before delivery





FAQ:

1. How many watt you have for this mino Street light ?

---- 20/30w,

2.How is the warranty?

----We could offer 5 years warranty, and during our warranty:

1). Products returned within the warranty period must be Leyond product number & date code.
2). Products of unknown sources or without valid marking will not be accepted.
3). Replacement items will be sent together with customer's next order shipment.

3.What's your delivery time?

---- For sample order our delivery time is 3-5 working days. For General order, for about 8 working
days.

4.What kind of payment and shippmeng do you use?
----T/T,Westen Union,Paypal
----Fedex,UPS,DHL,TNT,HongKong Post,EMS or other ways of shippment.


5.Would you do OEM or ODM orders?

---- Sure, OEM and ODM orders are welcome





relevant Hot Selling items:

Mini Size 20-30w Street Light Led Lamp High Lumen Out Put 160lm/w 5 Years Warranty






If any interested, feel free to contact me or filled below, thanks for your time.
