IP66 high efficiency led street light 30W for roadway lighting fixture.

Product Categories
Shenzhen Leyond Lighting Co.,Ltd.
Contact Now

IP66 high efficiency led street light 30W for roadway lighting fixture.

Brand Name : Leyond

Model Number : LY-ST50030-XX

Certification : CE ROHS ENEC CB

Place of Origin : China

MOQ : 20

Price : Contact us for details

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10000-30000/month

Delivery Time : 5-15day

Packaging Details : Gift box + Outer box

Product Name : King LED Street light

Lamp power : 20W,25W,30W

LED Chips : Lumileds Luxeon 5050

LED Driver : Chinese Brand

Input Voltage : AC100-240V 50/60Hz

Lamp body material : Aluminum housing + PC Lense

Whole lamp efficiency : >160Lm/W

CRI : >70

Warranty : 3 years

Contact Now

IP66 high efficiency led street light 30W for roadway lighting fixture.



01. Structure:



IP66 high efficiency led street light 30W for roadway lighting fixture.

02. Features:

  • Super slim die cast aluminum housing, new compact design led street light, excellent appearance.
  • Professional outdoor power coated, the most advantages is anti-corrosion.
  • High luminous flux,reach 150-170LM/W.Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
  • No diffuse reflection effect, with high light efficiency, coupled with a unique secondary optical design, can be irradiated to a wider area, once again improve the efficiency of light has reached the purpose of energy conservation.
  • Anti-glare and uniform light level to avoid any visual discomfort.
  • Adopting LUXEON 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 96%.
  • Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
  • Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
  • Green environmental protection, no UV light and infrared radiation, no mercury pollution.
  • Nice appearance and non-fouling properties, Protection class IP66.

03. Specification:

Par NO

Parameter

 LY-ST50030PW LY- ST50030WW LY- ST50030NW
Inptut voltage AC100V～240V 50/60HZ // DC12-24V
Sysem consumption(W) 30 30 30
Luminous flux(lm) 4850 4260 4650
Chip Brand LUXEON 5050/  LEYOND 5050 LUXEON 5050/  LEYOND 5050 LUXEON 5050/ LEYOND 5050
Beam Angle 150*70 DEG 150*70 DEG 150*70 DEG
CRI ＞70
Color Temperature Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K
LED Driver LEYOND
Luminous efficiency(lm/w) ＞160
Lifespan(hrs) ＞50000
IP Rating IP66
Dimmable YES＆NO YES＆NO YES＆NO
Size(mm) 300x150x66 300x150x66 300x150x66
Net Weigh(kg) 1.2 1.2 1.2
Package Size(mm) 330*180*100 330*180*100 330*180*100
Package Quantity(Pcs) 1 1 1
Gross Weigh(kg) 1.6 1.6 1.6

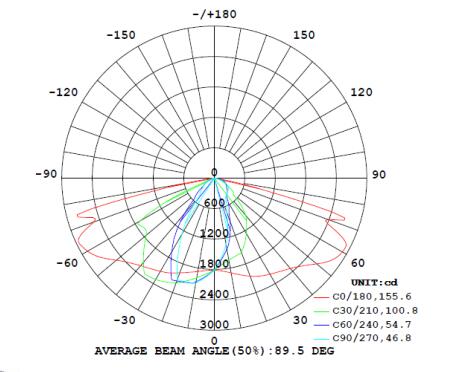

04. Distribution Curve (30W):

IP66 high efficiency led street light 30W for roadway lighting fixture.

IP66 high efficiency led street light 30W for roadway lighting fixture.

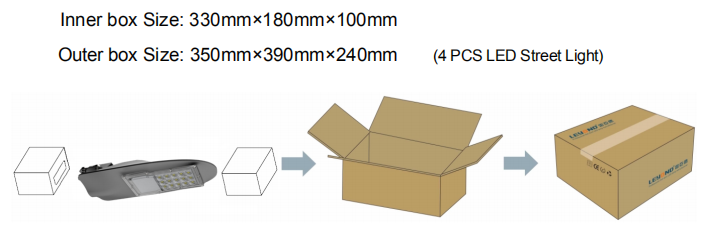

05. Package:

IP66 high efficiency led street light 30W for roadway lighting fixture.

06. Production:

IP66 high efficiency led street light 30W for roadway lighting fixture.



07. Testing:

IP66 high efficiency led street light 30W for roadway lighting fixture.



87. Exhibition:

IP66 high efficiency led street light 30W for roadway lighting fixture.
