| Technical Data |
| Power(W) | 50W |
| Input Voltage(V) | 90-305V AC,50/60Hz |
| CHIP model | Lumileds 5050 |
| Housing material | Die-casting Pure alluminum |
| Driver | Meanwell HLG-60 |
| Warranty | 5 years |
| Dimension(mm) | 410*200*90 |

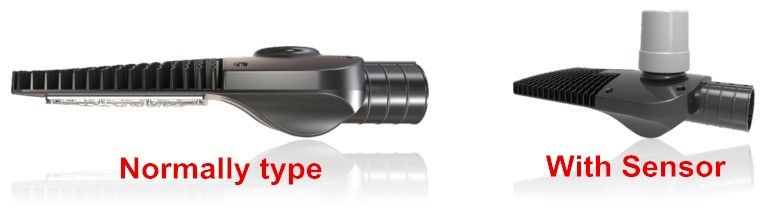

| Sensor function | Photocell/Motion Sensor/Intelligent sensor |

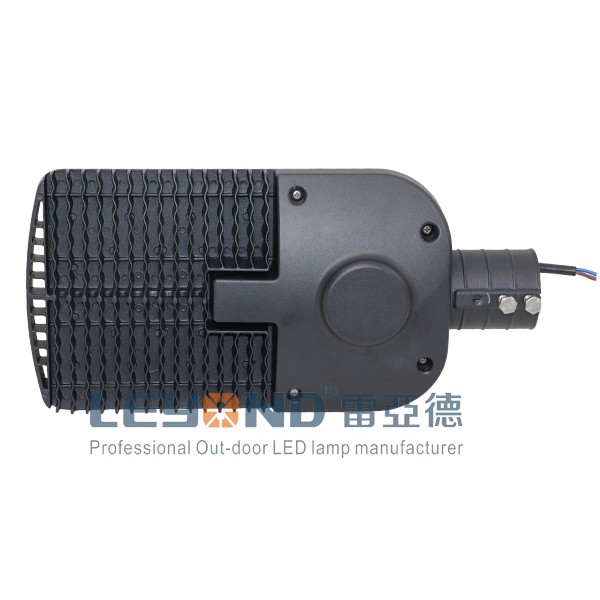

1. Outlook
2. Application
Suitable for the street lighting at highways, urban roads and secondary roads, stadiums,
sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.
3. Features
- Absolutely unique mold,make your lighting special and fantastic.
- Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
- Anti-glare and uniform light level to avoid any visual discomfort.
- high quality power supply, input voltage 100-277V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
- Adopting 3030 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
- Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenance cost.
- Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
- Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
- Green environmental protection, no UV light and infrared radiation, no mercury pollution.
- Nice appearance and non-fouling properties, Protection class IP66.
- Work without strobe, fast transient response；A wide range of working voltage.
4. Specification
| Par NO Parameter | LY-ST10050PW | LY- ST10050WW | LY- ST10050NW |
| Inptut voltage | AC100V～240V 50/60HZ // DC12-24V |
| Sysem consumption(W) | 50 | 50 | 50 |
| Luminous flux(lm) | 8000 | 7500 | 7750 |
| Chip Brand | Luxeon 5050 | Luxeon 5050 | Luxeon 5050 |
| Beam Angle | 150*65 DEG | 150*65 DEG | 150*65 DEG |
| CRI | ＞80 |
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K |
| LED Driver | MEAN WELL HLG-60H |
| Luminous efficiency(lm/w) | ＞160 |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP66 |
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | 410x200x90 | 410x200x90 | 410x200x90 |
| Net Weigh(kg) | 2.8 | 2.8 | 2.8 |
| Package Size(mm) | 465*255*145 | 465*255*145 | 465*255*145 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 3.3 | 3.3 | 3.3 |
5. Distribution Curve (50W)
6. Operation and Storage Condition
l Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
l Input Voltage 100~240V AC, 50/60Hz
l Storage Ambient Temperature -20 to +60°C, Relative Humidity 5~95%
l Mounting Height : Suitable for 3~8m height
7. Package
Inner box Size: 465mm×255mm×145mm
Outer box Size: 580mm×485mm×310mm (4 PCS LED Street Light)
7. Assembly and Installation
1) AC100-240V
- Blue : Neutral
- Brown : Line
- Yellow-Green : Ground
2) DC12-24V
8. Warning
l Do Not Use Other Devices for LED Street Light ,Installation Such as Stabilizer, Regulator …etc
l Do Not Open the Light Engine
l Do Not Soak the LED Street Light into Water
l Do Not Light up the System Without Grounding
