Bridgelux 200W ASA Outdoor LED Flood Lights with waterproof IP65.
1, Features:
Full waterproof design
High transmittance empered glass,transimittan 93%

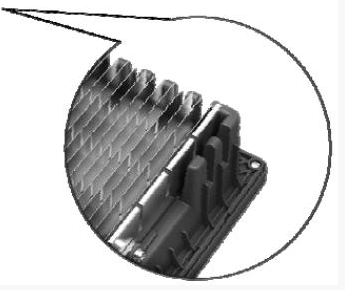

The radiating area 4260cm²
Multi-Chip on lead frame,single module LED package design
System design integrating power supply,LED light engine ,and heat sink
Over Current,Over Voltage,Over Heat,Thunder Protection
Choice of correlated color temperatures
Long lifespan for LED 50,000 hrs
Complying with CE,ROHS, No strobing during working, Fast response (no delay) , No
mercury vapour ,No radiation,No UV,No damage with frequency switching
IP Rating: IP65
Power supply direct touch the radiator,in light weight
2,Application area:
Replacing traditional High Pressure Sodium lamp or metal halide lamp.
Widely used for advertise billboard ,exterior wall of hotel and related landscape lighting

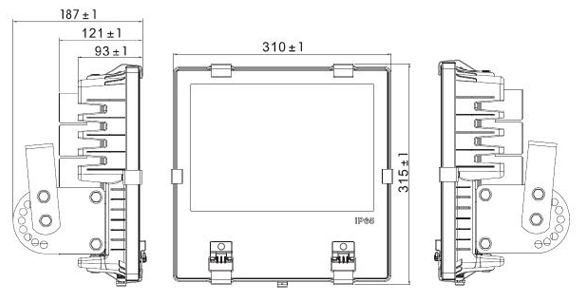

3,Product Dimensions:
Attentions:
1,All dimension units are millimeters.
2,All dimension tolerance is ±1mm unless otherwise noted.
4,Product Specification:
Input voltage: AC85V～265V
Freqency range: 50HZ～60HZ
Tatal harmouic distortion: ≤9%
Power facor: ≥0.9
Power efficiency: ＞85%
Sysem consumption: 205W
LED package: Multi-chip on led frame,Single module
LED consumption: 10W
LED Working voltage: DC30～36V
LED quantity:1PCS
LED luminous: ＞14500 lm
LED luminous efficiency: 90～100 lm/W
CRI: ＞80
Average illuminance:
H=6m ＞92 lux
H=8m ＞60 lux
H=10m ＞38 lux
Facula area:
H=6m 12m×12m
H=8m 15m×15m
H=10m 18m×18m
Illuminance uniformity: ＞0.68
LED Junction temperature: ≤60℃
Operational condition: Temperature -40℃～60℃
Humidity 10%～90%RH
Storage temperature: -40℃～85℃
Working life-span: ＞50,000H
Connect wire: Brown-L Blue-N Yellow/Green-G
Beam angle: 120°
IP Grad: IP65
Housing: ABS and AI alloy
Mounting Height: Suitable for 8～10m height
5,Connect wire:
Blue—Neutral
Brown—Line
Yellow/Green—Ground
6,Polar Diagram of Luminance:
7,ISOLUX CURVE:
Attentions:
All data is under 25℃,unless otherwise specified
8,Package:
1 Set = 460mm×405mm×265mm 7.2Kg
1 Carton = 2 Set Size: 485mm×430mm×600mm 19.2Kg
9,Installation:
Installation tool: A adjustable wrench group.
Installation Steps:
① Tighten Axle Screw, and Locate Screw
② Connecting the power line of LED Flood Light to the power supplier ,finish the installation procedure
The installation notices:
① No necessary using other devices for LED Flood light installation such as stabilizer, regulator and so on
② Opening the light and lifting the buckle is unallowable. Soaking in the water is unallowable
10,Warning:
Do Not Use Other Devices for LED Floodlight Installation Such as Stabilizer,
Regulator …etc
Do Not Open the Light Engine
Do Not Soak the Floodlight into Water
Do Not Light up the System Without Grounding
Do Not Use Dimmer
11,Warranty:
2 Years Warranty Starts from Taking Delivery of Goods a Day. The Warranty Content
Includes the Damage of All Components, Such as LED Light Source and Power
Supply...etc.
The Floodlight Must Operate at the Common Normal Environment. As in Order to
be Faced by the Sea Road in 3 Kilometers or to Use in the Bad Environment Such as Tunnel, Warranty Period is Within 1 Year.
The Calculation of Warranty Period with Turn on the Light for a Day 8-10 Hours is Limited. As Everyday Longer Than 10 Hours, Then Gradually Decrease According to Comparison Warranty Time Limit.
