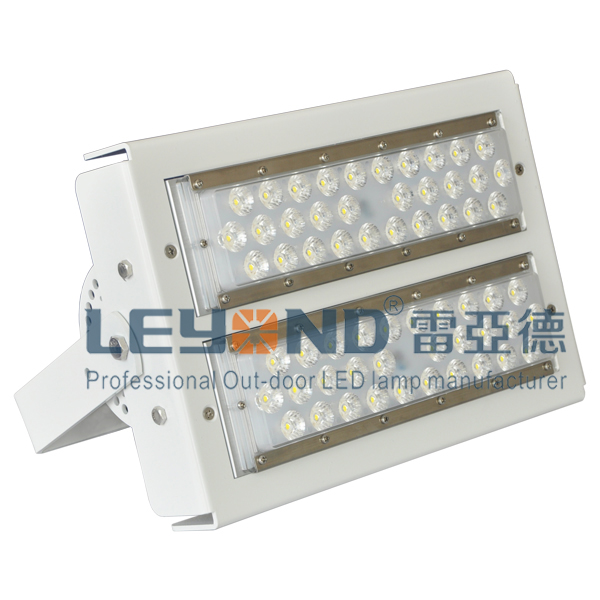

Tennis court lighting module design High Efficiency Outdoor LED Flood Lights 100W

Brand Name : Leyond

Model Number : LY-ST23100XX

Certification : CE RoHS

Place of Origin : China

MOQ : 1pcs

Payment Terms : T/T, Paypal

Supply Ability : 3000pcs per month

Delivery Time : 7-10 working days

Packaging Details : 3pcs/ctn

Power : 100W

Housing Color : Black and Wite

LED Chip : Bridgelux 3030

LED Driver : Meanwell HLG

Bean Angle : 24° , 36° , 60° , 90°

Luminous Eff : 125LM / W

CCT : 2800K - 6500K

Warranty : 5 Years Warranty

Contact Now

Tennis court lighting module design High Efficiency Outdoor LED Flood Lights 100W







Tennis court lighting module design High Efficiency Outdoor LED Flood Lights 100W




Feature:



1. Adoption LEYOND exclusive Lens with light transmittance up to 98%



2. Perfect Light Distribution Solution , Adoption of integrated shell optic lens , enhance the brightness and illumination uniformity



3. There are 24° , 36° ,60° , 90° beam angle options for the Lens



4. Scientifically-designed heat dissipater with much better cooling effect



5. High luminous efficiency , Whole lamp output light effiency >130LM/W



6. High quality power supply, input voltage 100-240V . The power efficiency is more than 90% , power factor greater than 0.98 , UL compulsory certification .



7. For the traditional light source such as the High Pressure Sodium , if the voltage fluctuation ±7% , the brightness and lifetime will be reduced very fast , but for LEYOND LED , even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all ; Over Current , Over Voltage , Over Heat , Thunder Protection



8. Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body



9. The CCT of Warm white , Neutral white , Pure white to meet the needs of different occasions , eliminated the low color temperature of the sodium lamp which cause the depressed mood , observers will feel more comfortable.







Electrical Specifications



Model modules number Power Input Voltage Input Current Power factor Power efficiency
LY-ST23100PW 2 100W AC90~305V
50/60Hz
0.46A/220VAC >0.99/115VAC
>0.98/230VAC
>90%



Photometric Specifications



Model modules number Power Luminous flux Luminous efficiency CRI CCT BeamAngle
LY-ST23100PW 2 100W >12000lm 120lm/W >50

3000-3500K
4000-4500K
5000-5500K

6000-6500K

24°
36°
60°

90°

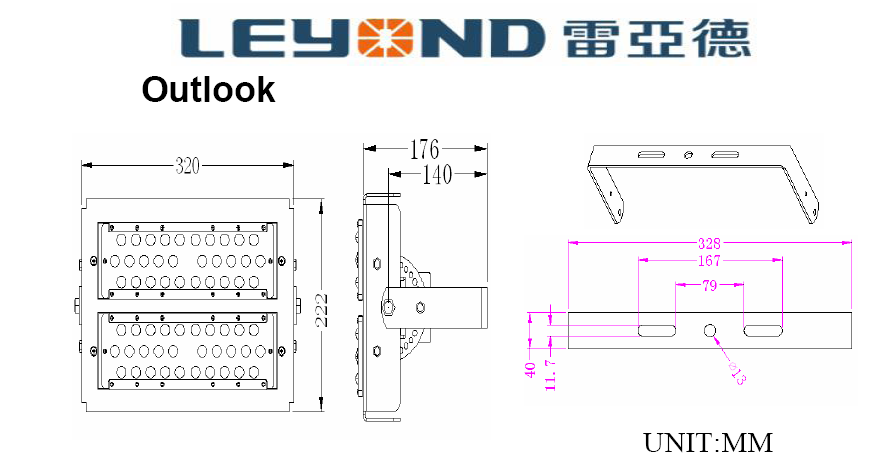

Mechanical Specifications:



Model modules number Power Carton Size gross weight Net Weight IP Rating Meterial
LY-ST23100PW 2 100W 385X310X155MM 6.3kg 5.6kg IP66 Aluminum +PC








Operation and Storage Condition:



• Operation Ambient Temperature -30 to +50°C, Relative Humidity 20~90%

• Input Voltage 100~240V AC, 50/60Hz

• Storage Ambient Temperature -30 to +65°C, Relative Humidity 5~95%

• Mounting Height : Suitable for 5~12m height



Tennis court lighting module design High Efficiency Outdoor LED Flood Lights 100W









Tennis court lighting module design High Efficiency Outdoor LED Flood Lights 100W




Warning:

1. Please be careful when open the package handle



2. It is not good to open the Light Engine and  use dimmer



3. If the new light is found damaged , please keep the originalpackage contact us



4. Lamps shall be installed and maintained by a qualified electrician





Trade terms:

Payment : T / T , western Union or Paypal


Shipping : By Express ( EMS , DHL , UPS etc ) , By Air or By Sea


Delivery time : 7 - 15 working days for normal orders


Port : Shenzhen , China







Our service:
1. Your inquiry for our products will be replied in 24 hours



2. Well-trained and experienced staffs to answer all your enquires in fluent English


3. OEM and ODM are welcomed


4. Make the products as your requirement.


5. Protection of your sales area , ideas of design and all your private information

Tennis court lighting module design High Efficiency Outdoor LED Flood Lights 100W
