High lumen slim LED flood light 10W with CE ROHS certifications.

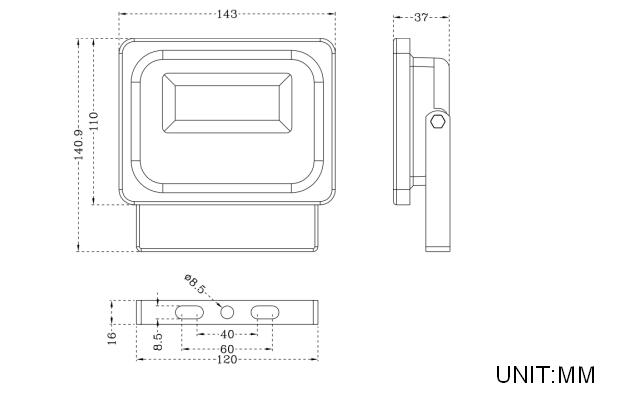

Lamp Drawing:
Features:
• Uniquely designed with plug&play PIR socket.The slim body with proffesional designed heat sink make this products very porpular in the market.
• Multi-Chip on Lead Frame, Single Module LED Package Design
• System Design Integrating Power Supply, LED Light Engine, and Heat Sink
• Over Current, Over Voltage, Over Heat, Thunder Protection
• Choice of Correlated Color Temperatures (Specification Re-Defined Accordingly)
• Long lifespan for LED 50,000 hrs
• 100% Recycle, No Pollution, and UV, IR
Technical Data:
| Par NO Parameter | LY-FL36010PW | LY-FL36010WW | LY-FL36010NW |
| Input voltage | AC100V～240V 50/60HZ |
| System consumption(W) | ≤10 | ≤10 | ≤10 |
| Light Fixture Luminance (lm) | 1150 | 1030 | 1120 |
| LED type of COB | LUXEON 3030 | LUXEON 3030 | LUXEON 3030 |
| Beam Angle | 120° | 120° | 120° |
| CRI | ＞70 | ＞70 | ＞70 |
| Color Temperature(CREE) | 5000-5700k | 2700-3200k | 4000-4500k |
| Material | Aluminum+Glass |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP66 |
| LED QTY (pcs) | 20 | 20 | 20 |
| Floodlight Size(mm) | 143X141X37 | 143X141X37 | 143X141X37 |
| NET Weight(KG) | 0.6 | 0.6 | 0.6 |
Package:
- 1 Set = 167mm X 60mm X 167mm 0.85KG
- 1 Carton=20Set Size : 355mm X 330mm X 355mm 13.3KG
Installation:
• The entire series of LED flood light are designed with wide range voltage, the voltage range is 85~264 volts, the frequency is 50/60Hz.
• Installation tool: A adjustable wrench group.
Installation Steps:
• 1.Tighten Axle Screw, and Locate Screw
• 2.Connecting the power line of LED Flood Light to the power supplier ,finish the installation procedure.
The installation notices
• 1.No necessary using other devices for LED Flood light installation such as stabilizer, regulator and so on.
• 2.Opening the light and lifting the buckle is unallowable. Soaking in the water is unallowable.
Warning:
• Do Not Use Other Devices for LED Floodlight Installation Such as Stabilizer, Regulator …etc
• Do Not Open the Light Engine
• Do Not Soak the Floodlight into Water
• Do Not Light up the System Without Grounding
• Do Not Use Dimmer
Applications:
• Projector / Floodlight
• Tunnel Lighting / Pathway Lighting / Park Lighting
• Signboard Lighting
