Pure White Workshop Garden 60 Hz 50Hz 50W LED Floodlight With PIR Sensor Detection 120 Degree
Features:
| Power: | 50w |
| Material: | Aluminum Alloy/PC |
| Chip: | Epistar |
| Light efficiency: | 80-90Lm/w |
| Color Temperature: | 2700 -3000K 4000-4500K 5000-6000K |
| CRI: | Ra70 |
| Beam Angle: | 120 degree |
| PF: | >0.95 |
| Working Life: | ≥ 50000 hrs |
| Warranty: | 3 years |
| Dimensions |
| Finishing Color: | Black |
| Wire connection: | L(Brown);N(Blue);G(Green/Yellow) |
| SHAPE: | Rectangle |
| Package: | 2pcs/carton |
| Work Environment |
| Input Voltage: | AC100-240V/50-60Hz |
| Operating Temperature: | -40~ + 60°C |
| Application |
| Application: | Projector / Floodlight
Tunnel Lighting / Pathway Lighting / Park Lighting
Signboard Lighting |
| Recommend mounting height: | 3-6m |
1. Adopting high power integrated LED, which ensures light is more uniform,light efficiency is higher.
2. Using high transmittance tempered glass,transimittance93%
3. Complying with ROHS,absolutely not contain mercury or other harmful substance
4. Lifespan of whole tube over 35000 hours
5. LED lamp turn on automatically when the body through the sensor area.
6. Can identify day and night automatically, the ambient-light can be selected to work at night automatically and stop in the daytime.
7. Time-delay can be adjusted vary to the place.
Technical Data:
| Material | Die-cast Aluminum |
| Input Voltage | AC100-240V 50/60Hz |
| Power Efficiency | ≥85% |
| Power factor | ≥0.95 |
| Beam Angle | 120º |
| LED Luminous efficiency | ≥110lm/W |
| Color Temperature | Warm white WW 2800-3500K
Neutral white NW 4000-5000K
Pure white PW 5500-7000K |
| Detection range | 120º |
| Detection distance | 12m |
| Time-delay | Min:5sec Max:6min±2min |
| Ambient-light | <3Lux-2000Lux |
| Installation | height:2m-4.5m |
Product Descriptions:
| Model | Product Dimension(mm) | Power
(W) | LED Luminous flux | Average Iilluminance | Facula Area | Net Weight |
| LY-FL1010PW-P | L115xW85xH106 | 12 | 760-860lm | 1m=289lux
2M=72lux
3M=32lux | 1M=3.5x3.5M
2M=6.5x6.5M
3M=9.5x9.5M | 0.65KG |
| LY-FL1020PW-P | L225xW230xH125 | 25 | 1700-1900lm | 2m=110lux
3M=50lux
4M=30lux | 2M=3.5x3.5M
3M=6.5x6.5M
4M=9.5x9.5M | 2.13KG |
| LY-FL1030PW-P | L225xW230xH125 | 35 | 2550-2850lm | 2m=155lux
3M=75lux
4M=45lux | 2M=3.5x3.5M
3M=6.5x6.5M
4M=9.5x9.5M | 2.14KG |
| LY-FL1050PW-P | L285xW270xH135 | 55 | 4250-4750lm | 4m=80lux
6M=35lux
8M=18lux | 4M=9x9M
6M=14x14M
8M=19x19M | 2.98KG |

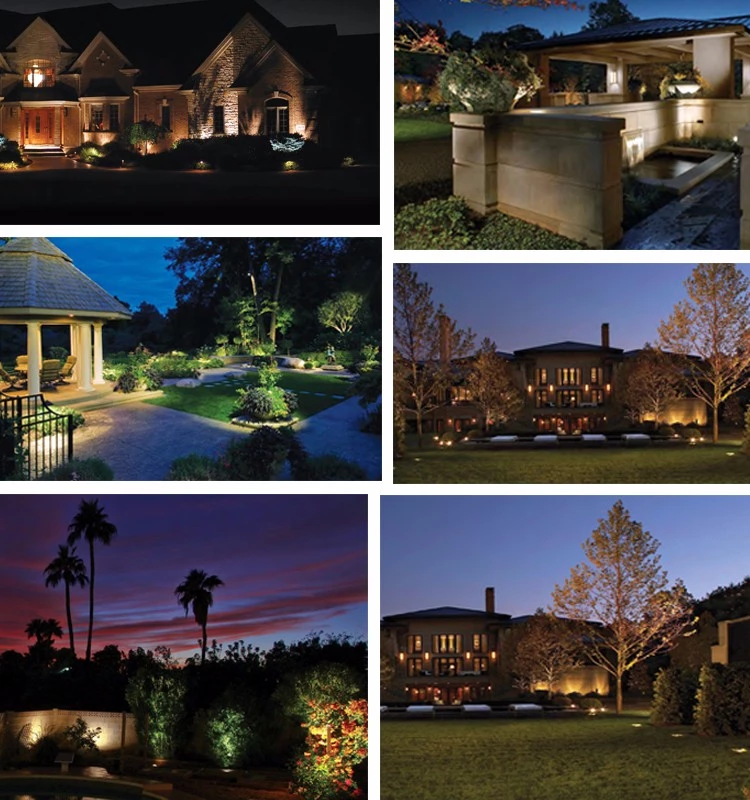

Applications:
Suitable for workshop, factory, garden, road and other automatic control occasion.
FAQ:
1. May I have a sample for the light please?
--- Sure,mixed power is also support.
2. How many watts does this light provide?
--- 80w, 100w,120w, 150w, 180w
3. Which shipping way do you have?
--- DHL, FEDEX, UPS and TNT are all support. By sea or by air can be available based on your request.
4. What is your warranty?
--- We are provide 3-5 years warranty which based on different materials.
5. What is the delivery time?
--- Normally, 5-7 days for sample, 15-20 days for bulk order. If on special condition, the delivery time can be discussed.
6. Do you make OEM ?
--- Yes, OEM orders are warmly welcomed.
7. Are you the manufacturer?
--- Yes, we are professional manufacturer for led lighting since 2008. And have completed design-delelop-sales-service system.
