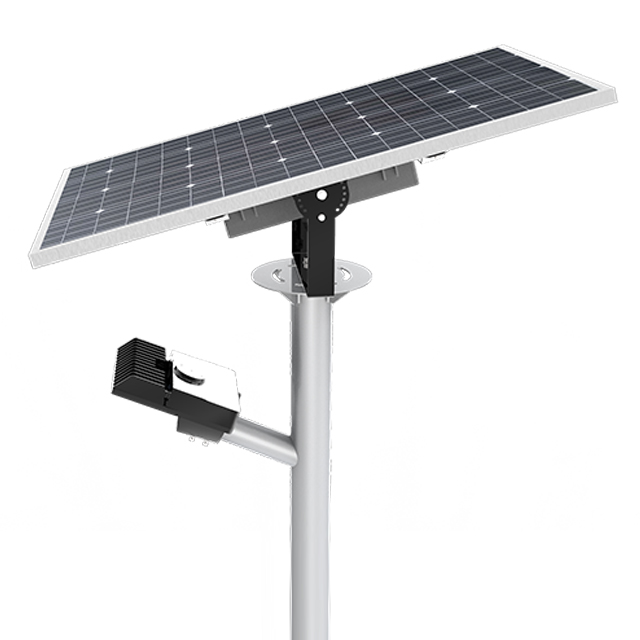

High Power Off Grid 6500K Solar LED Street Light With Time Control
High Power Solar off grid LED Street Light with MPPT Controller
1. The lamp adopts integrated structure design, with better heat dissipation design and longer life;
2. Using LUXEON 5050 lamp beads, the whole lighting effect is up to 160lm/W;
3. The solar panel is made of monocrystalline silicon, with a higher conversion efficiency, up to 18%, and a service life of up to 25 years;
4. Using the most advanced MPPT tracking control technology to improve system efficiency and reduce costs;
5. It has functions of light control, time control, dimming, intelligent power saving + morning light;
6. Solar controller built-in lightning protection module;
7. Using ternary lithium battery technology, the battery capacity is high;
8.365 days uninterrupted power.
| Par NO. Parameter | LY-ST70100PW | LY- ST70100NW | LY- ST70100WW |
| Battery | 18650 lithium battery 12V 120 Ah |
| Beam angle | 150x70° |
| Pole diameter | 60MM |
| Light output | 100W |
| Luminous flux(lm) | 16800 |
| LED Quantity(pcs) | 96 |
| Color Temperature | Pure white:5000-6500K | Warm white:4000-4500K | Neutral white:2700-3200K |
| Solar panel | 120W /18V monocrystalline silicon |
| CRI | ＞70 |
| Chip Brand | LUXEON 5050 |
| Operating time | Full power >12 hours ,Intelligent mode 3-4 days |
| Control Mode | Light Control +Time Control |
| Material | Die Casting Aluminum |
| Luminous efficiency(lm/w) | ＞160 |
| Lifespan(h) | ＞50000 |
| IP Rating | IP66 |
| Installation height | 6~10M |
Product Details:
80W-180W for Optional, and the light fixture can be changed according to customer's demand.
1. Adopting LUMILEDS 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, high light transmittance up to 98%.
2. Very high quality 18650 Lithium battery, with 12v 50Ah capacity, 6000 times re-cycle. Lifespan 10 years
3. MPPT smart system motion sensor controller, programmable. Hybrid solution available if customized requests.
a. light source:
b. Solar panels:
c. Battery pack
a. light source
| Par NO. | Size | Net weight | Gross weight | Quantity |
| Inner box | L453*W270*H200mm L17.84*W10.63*H7.87Inch | 3.6kg | 4.1kg | 1PCS |
| Outer box | L470*W285*H425mm L18.50*W11.22*H16.73Inch | 7.2kg | 8.6kg | 2PCS |
b. Solar + Battery
| Par NO. | Size | Net weight | Gross weight | Quantity |
| Inner box | L1055*W180*H725mm L41.54*W7.09*H28.54Inch | 16.78kg | 18.2kg | 1PCS |
| Outer box | L1070*W375*H740mm L42.13*W14.76*H29.14Inch | 33.6kg | 37.5kg | 2PCS |
For More Information, Pls Feel Free To Contact Us
FAQ
- What about the lead time?
A:Sample needs 7 days, mass production time needs 1-2 weeks for order quantity
- Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
- How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
- How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
- Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
- Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
- How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
